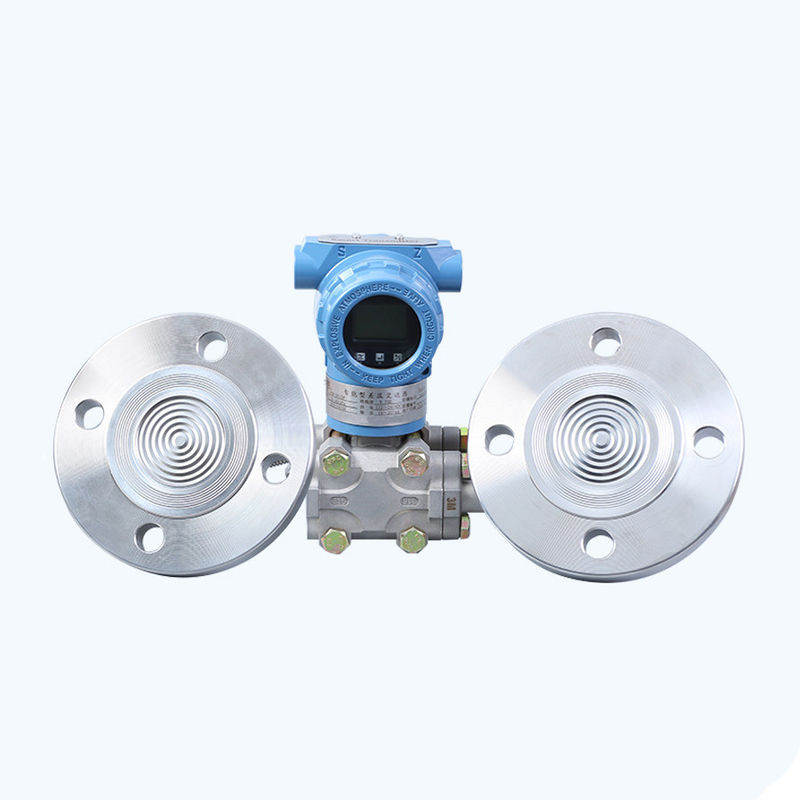

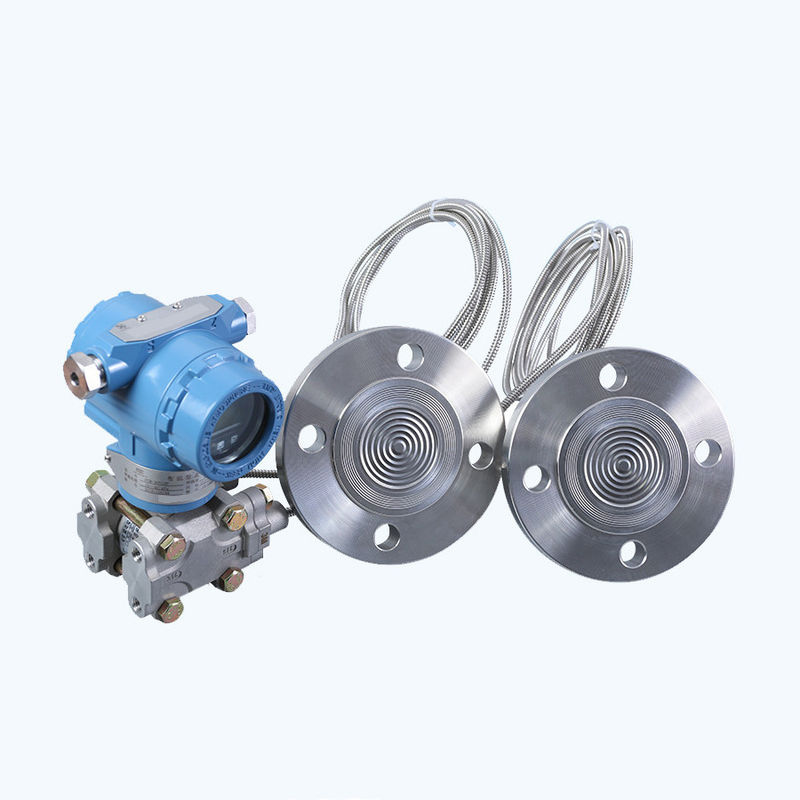

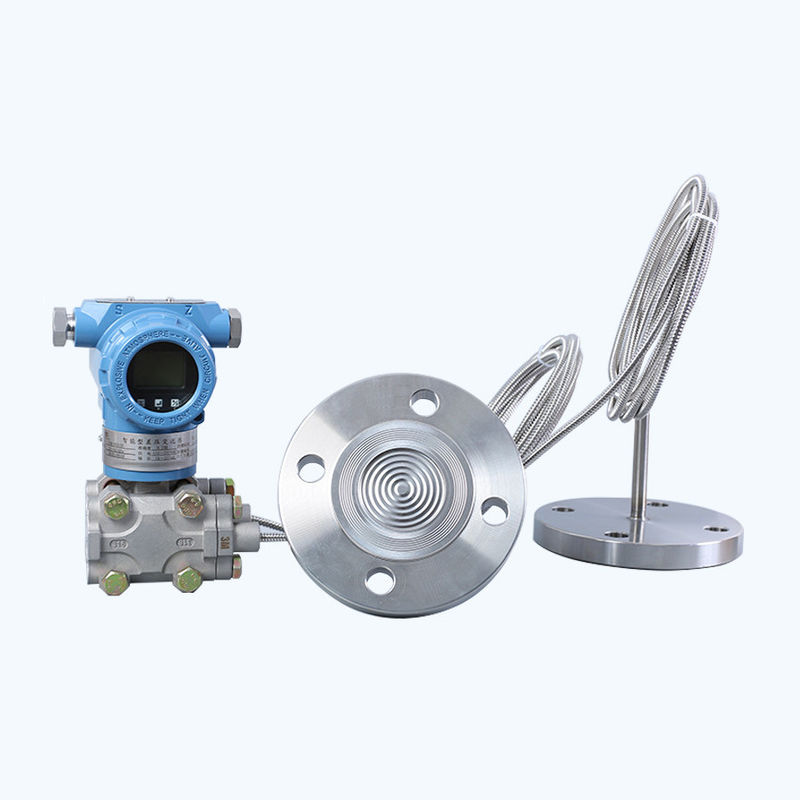

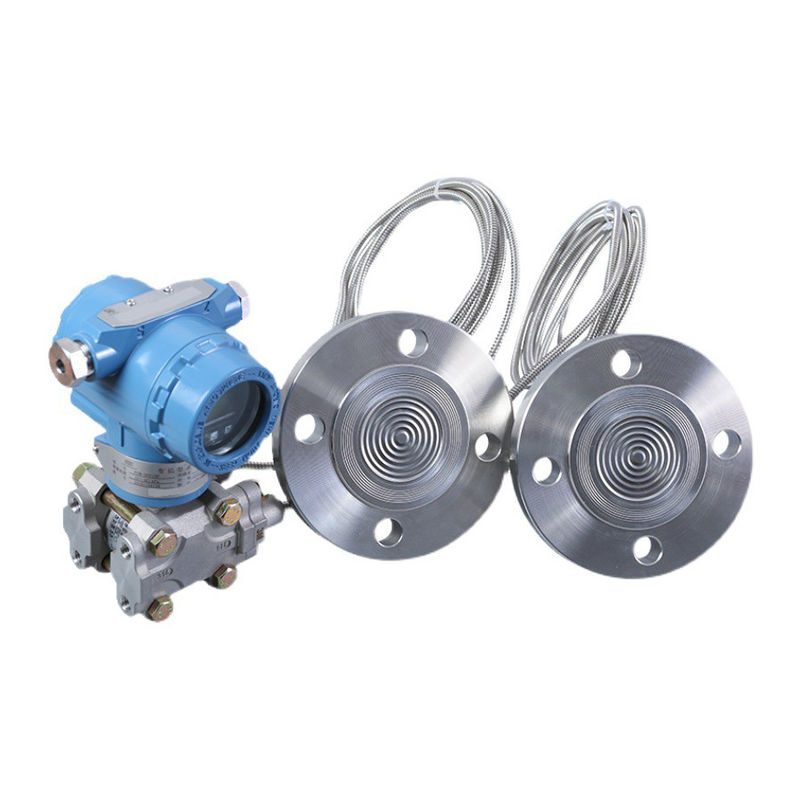

Name: Customizable 220A Air Differential Pressure Transmitter for Precise Measurements
Brand: Xi'an Xiyi Central Control Technology Co., Ltd.
SKU: ECA210A, 220A
Price: 500.00 USD
Availability: InStock

Home > products > Differential Pressure Transmitter >

Customizable 220A Air Differential Pressure Transmitter for Precise Measurements

220A Air Differential Pressure Transmitter

Precise Measurements Pressure Transmitter

Place of Origin:

Shaanxi, China

Brand Name:

YOKOGAWA

Model Number:

ECA210A, 220A

Request A Quote

Customizable 220A Air Differential Pressure Transmitter for Precise Measurements

Product Details

Warranty:

12 Months

Customized Support:

OEM

Product Name:

Flange Mounted Differential Pressure Transmitter

Model:

ECA210A, 220A

MOQ:

Highlight:

220A Air Differential Pressure Transmitter

Precise Measurements Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1 pc

Price

$400.00 - $600.00/pieces

Delivery Time

7-14 days

Payment Terms

T/T

Supply Ability

100 pc 1 week

Hot Sale E+H Differential Pressure Deltabar PMD55 Differential Pressure Transmitter with Metal Sensor for Measurement

Get Best Price

video

Endress-Hauser 100% Original Authentic PMD55 E+H Differential Pressure Deltabar

Get Best Price

video

Deltabar PMD55 Differential Pressure Transmitter for Level Volume and Mass Measurement in Liquids Vapors and Gases

Get Best Price

video

Endress+Hauser Deltabar PMD55 Differential Pressure Transmitter

Get Best Price

Contact Now

Product Description

Customizable 220A Air Differential Pressure Transmitter for Precise Measurements

Introduction

The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor canalso measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

Features:
1. Process Fluid: Liquid, Gas, Vapor
2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure
3. Working Temperature: -25 to +95C
4. Current Output: 4 - 20 mA 2 wires Har t Protocol
5. Power Supply: 24VDC
6. Ambient Temperature: -25 to +240C
7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT
8. Electrical Connections: 1/2”NPT or M20*1.5
9. Enclosure:IP65
10.Intrinsically Safe: Exia II C T6
11.Explosion proof: Exd II B T5

Pressure Transmitter Order Sheet

Item	Code	Specification
AT3051DP		Differential Pressure Transmitter
AT3051GP		Gauge Pressure Transmitter
Measurement Range	2	0-0.1~1.5 Kpa
	3	0~7.5 Kpa
	4	0~37.4 Kpa
	5	0~186.8 Kpa
	6	0~690 Kpa
	7	0~2068 Kpa
	8	0~6890 Kpa
	9	0~20680 Kpa
Output	S	4-20mA, HART Protocol, Linear output
Output	J	4-20mA, HART Protocol, Square root output(Range≥5kpa)
Diaphragm Material / Fill Fluid	2	Stainless Steel 316L Silicone Oil
	3	Hastelloy C(range >3Kpa) Silicone Oil
	A	Stainless Steel 316L Fluorine oil
Drain hole	B	Back of process flange or none
	U	Process flange side upper
	L	Process flange side lower
Wetted O-ring Material	7	Buna-N (NBR)
	6	Viton (FKM) (Temperature ≥-20℃)
	5	Low Temperature Viton (FKM-GFLT)
Process Connection	H	1/4'' NPT F
Maximum Pressure Limit	1	14 Mpa( 4Mpa for range 2)
	3	25 Mpa
	5	32 Mpa
Cable Entry	1	M20*1.5 or 1/2'' NPT
Mounting Bracket	B00	None
	B01	Tube-type Curved Bracket (carbon steel)
	B02	Wall mounting bracket (carbon steel)
	B03	Tube-type Flat Bracket (carbon steel)
	B04	Tube-type Curved Bracket (stainless steel)
	B05	Wall mounting bracket (stainless steel)
	B06	Tube-type Flat Bracket (stainless steel)
Optional	d	Intrinsically safe type, Flameproof (Exd IIC T4~T6)
	i	Intrinsically safe (Exia IIC T4~T6)
	M3	LCD display
	D1	Stainless steel drain valve or screw (2pcs)
	C1	1/2'' NPT female waist flange (2sets)
	C12	1/2'' NPT-M20*1.5-Φ14 pressure pipe (2sets)
	C2	M20*1.5 male thread T joint (2sets)
	C21	M20*1.5 T joint -Φ14 pressure pipe (2sets)
	K1	Degreasing treatment
