Name: PT100 Temperature Sensor and Armored Thermocouple for Precise Temperature Monitoring
Brand: Xi'an Xiyi Central Control Technology Co., Ltd.
SKU: Temperature Instruments
Price: 500.00 USD
Availability: InStock

Home > products > Temperature Instruments >

PT100 Temperature Sensor and Armored Thermocouple for Precise Temperature Monitoring

PT100 Temperature Sensor Armored Thermocouple

Precise Temperature Monitoring Armored Thermocouple

Place of Origin:

Shaanxi, China

Brand Name:

XIYI

Model Number:

Temperature Instruments

Request A Quote

PT100 Temperature Sensor and Armored Thermocouple for Precise Temperature Monitoring

Product Details

Warranty:

3 Years

Customized Support:

OEM

Product Name:

Temperature Instruments

MOQ:

Highlight:

PT100 Temperature Sensor Armored Thermocouple

Precise Temperature Monitoring Armored Thermocouple

Payment & Shipping Terms

Minimum Order Quantity

5 pieces

Price

$500.00/pieces

Delivery Time

7-14 days

Payment Terms

T/T

Supply Ability

100 pc 1 week

ABB Temperature Transmitter TTH300 Module HART 4-20mA Output

Get Best Price

Head Mount Temperature Transmitter TTH300 Temperature Transmitter Module

Get Best Price

TTH200 TTH300 All - in - one Explosion - proof ABB Temperature Transmitter

Get Best Price

Temperature Module ABB Temperature Transmitter TTH300 Temperature Sensor TTF200

Get Best Price

Contact Now

Product Description

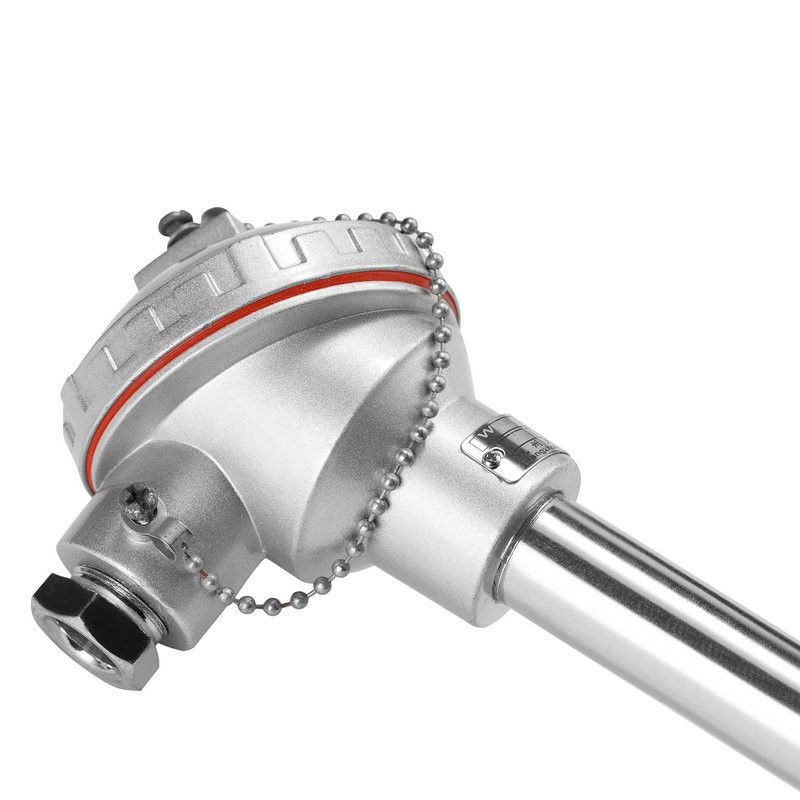

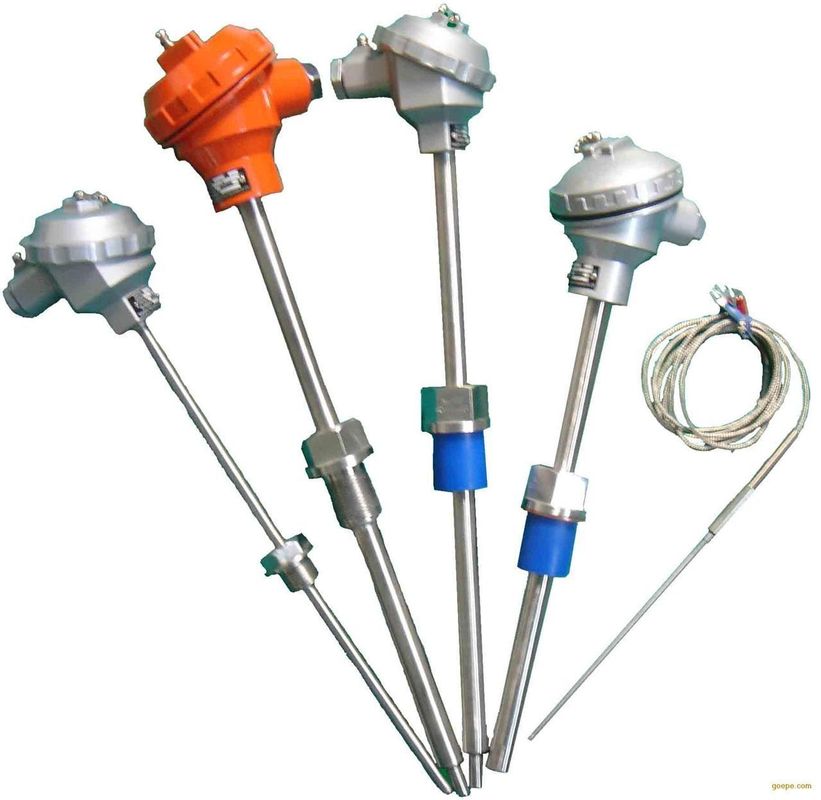

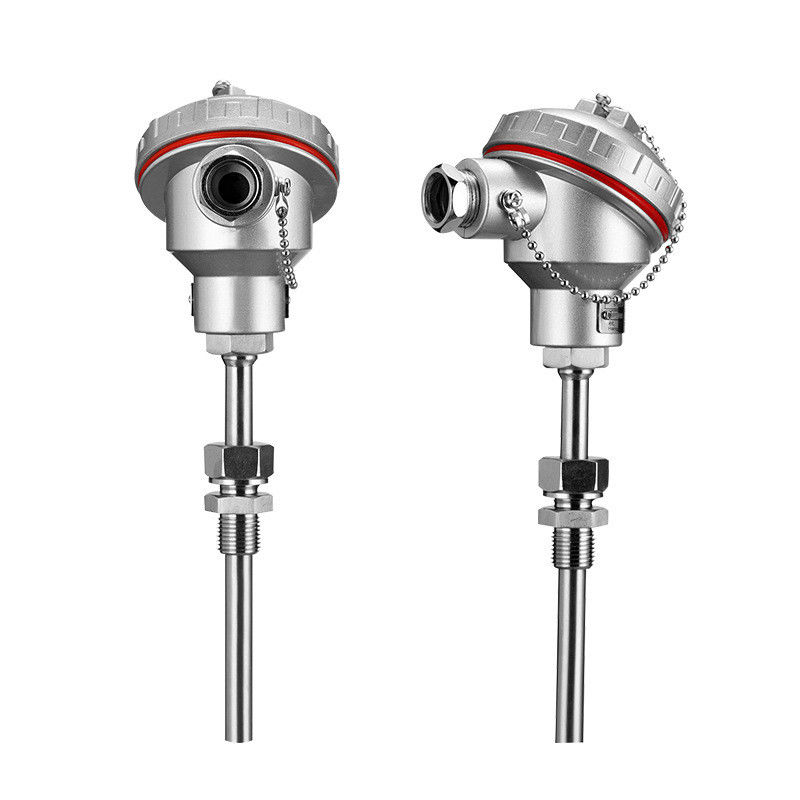

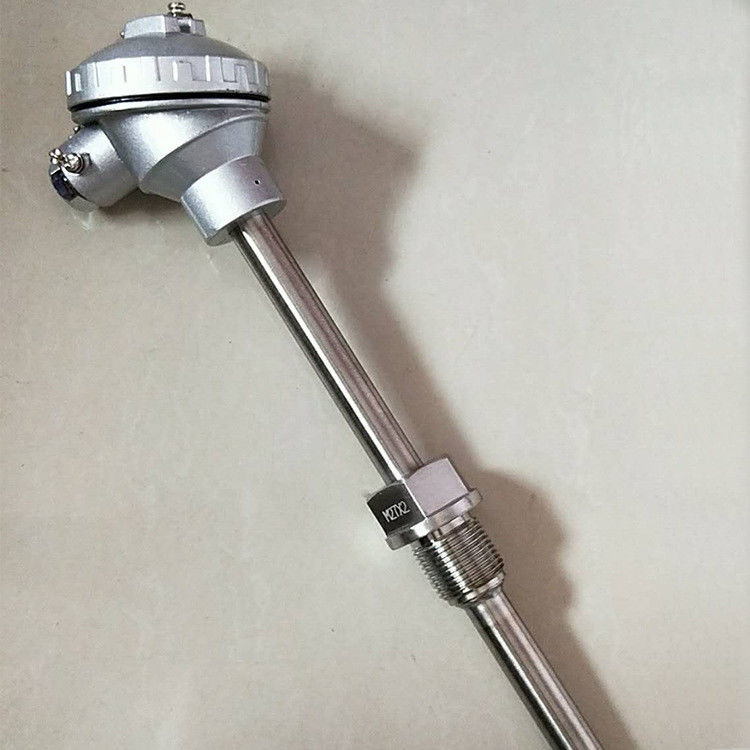

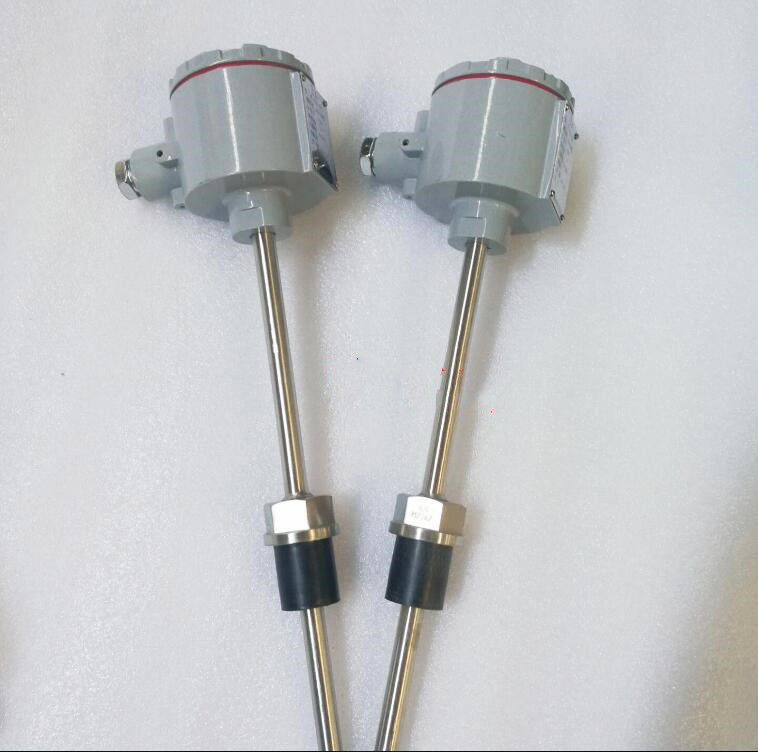

PT100 Temperature Sensor and Armored Thermocouple for Precise Temperature Monitoring

Thermocouple are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.

A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature,
MICC providing Thermocouples are manufactured in different combinations of metals. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.

TYPE AND SHEATH TABLE:

Product Name	Code	Type	Sheath material	Outer dia.(mm)	Temperature
Ni Cr - Ni Si	KK	K	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
Ni Cr Si - Ni Si	NK	N	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
Ni Cr -Konstantan	EK	E	SS304	0.5-1.0	400
			SS321	1.5-3.2	500
			SS316	4.0-8.0	800
Fe - Konstantan	JK	J	SS304	1.0	300
			SS321	1.5-3.2	500
			SS316	4.0-8.0	800
Cu - Konstantan	TK	T	SS304	1.0	-200-100
			SS321	1.5-3.2	100-200
			SS316	4.0-8.0	100-350

ACCURACTY TABLE:

Name	Type	Class of Accuracy
		I		II		III
		Tolerance	Temperature	Tolerance	Temperature	Tolerance	Temperature
Ni Cr - Ni Si	K	1.5 or 0.4%t	-40~1000	2.5 or 0.75%t	-40~1000	2.5 or 0.75%t	-200~40
Ni Cr Si- Ni Si	N		-40~1000		-40~1000		-200~40
Ni Cr - Konstantan	E		-40~800		-40~800		-200~40
Fe - Konatantan	J		-40~750		-40~750		---
Cu - Konstantan	T	1.5 or 0.4%t	-40~350	1 or 0.75%t	-40~350	1 or 0.75%t	-200~40
Pt Rh 10 - Pt	S	1 or 1+(t-1100)x0.003	0~1600	1.5 or 0.25%t	0~1600	---	---
Pt Rh 13 - Pt	R	1 or 1+(t-1100)x0.003	0~1600		0~1600	---	---
Pt Rh 13 - Pt Rh 6	B	---	---		600~1700	4 or 1.5%t	600~1700
