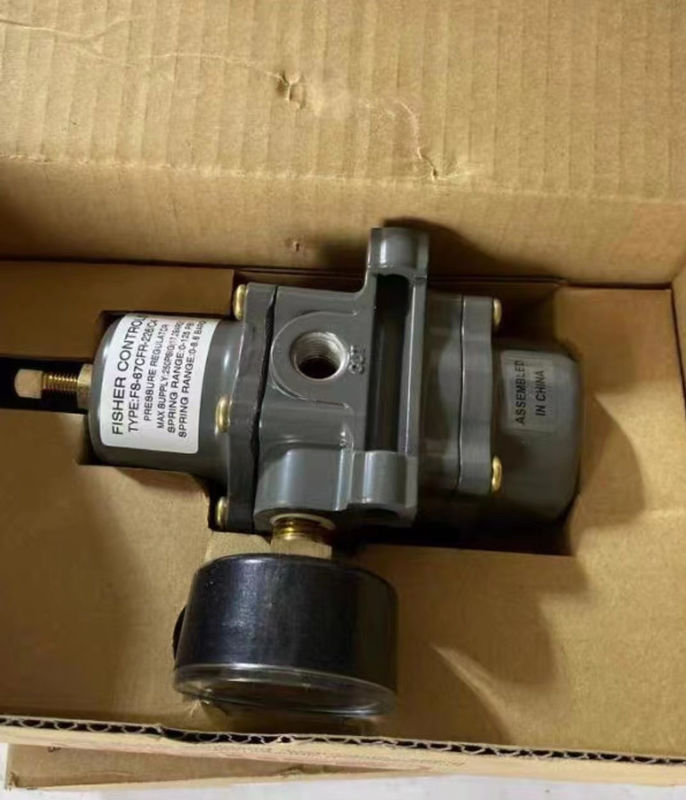

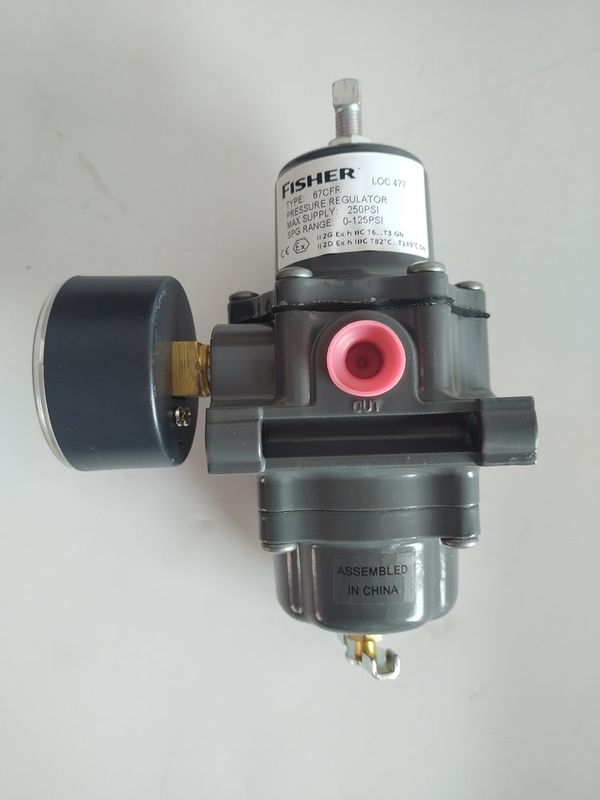

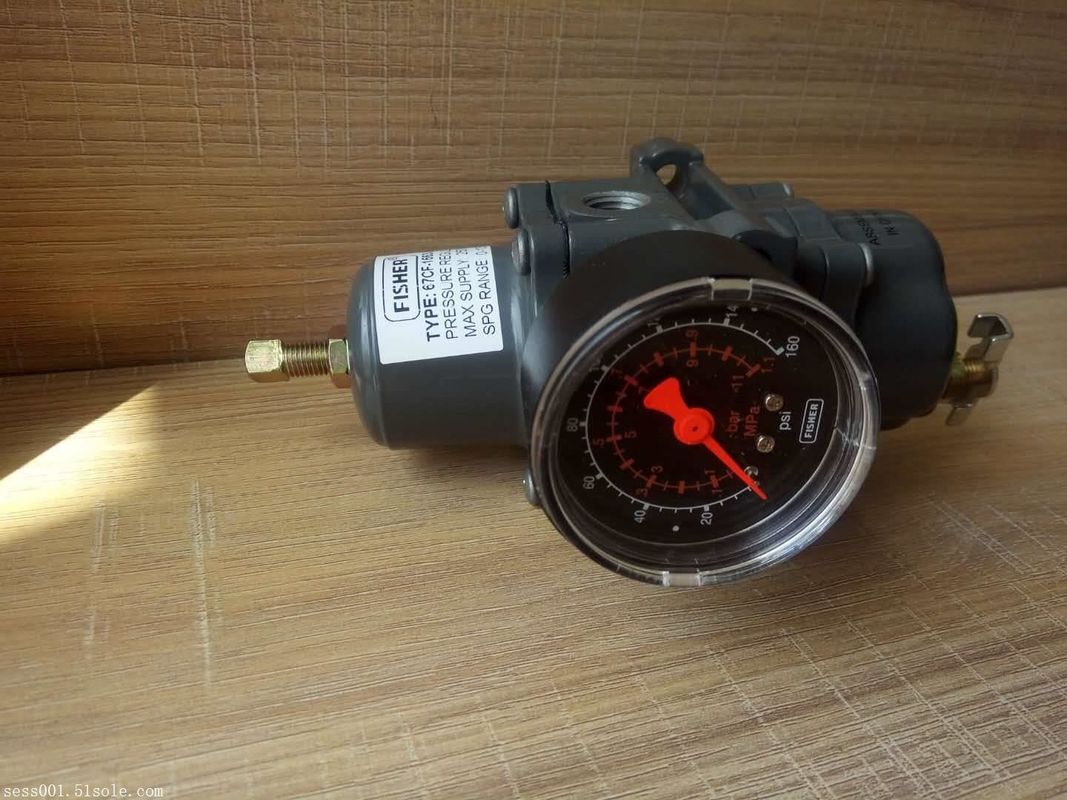

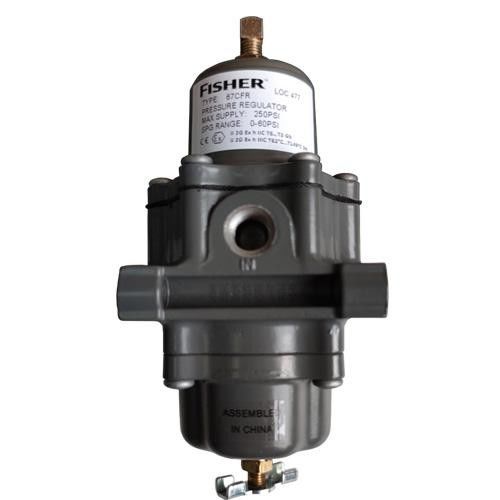

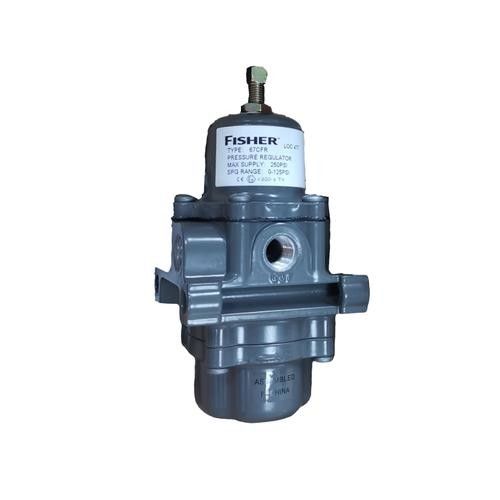

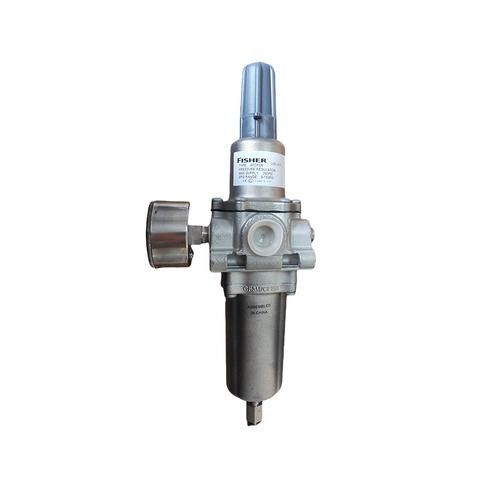

Original New Emerson Fisher 67CFR Filter Pressure Reducing Valves

Fisher 67CFR Instrument Supply Regulators High Pressure Regulators

67C Series direct-operated regulators and filter regulators are typically used to provide constantly controlled, reduced pressures to pneumatic and electropneumatic controllers and other instruments. These are suitable for most air or gas applications. Other applications include providing reduced pressures to air chucks, air jets, and spray guns.

Instrument Supply Regulator are typically used to provide constantly controlled, reduced pressures to pneumatic and electropneumatic controllers and other instruments. The 67C Series are suitable for most air or gas applications. Other applications include providing reduced pressure for air chucks, air jets, and spray guns.

Specifications:

• 0-20 psi; no gauge
• Body Material: Aluminum
• Body Size and End Connection: 1/4 NPT
• Maximum Inlet Pressure: 250 psig / 17.2 bar
• Maximum Emergency Outlet Pressure: 50 psi / 3.4 bar over outlet setting
• Temperature Capabilities: NBR: -40 to 180°F / -40 to 82°C || FKM: 0 to 300°F / -18 to 149°C || Silicone (VQM) Diaphragm and Low Temp Bolting: -60 to 180°F / -51 to 82°C
