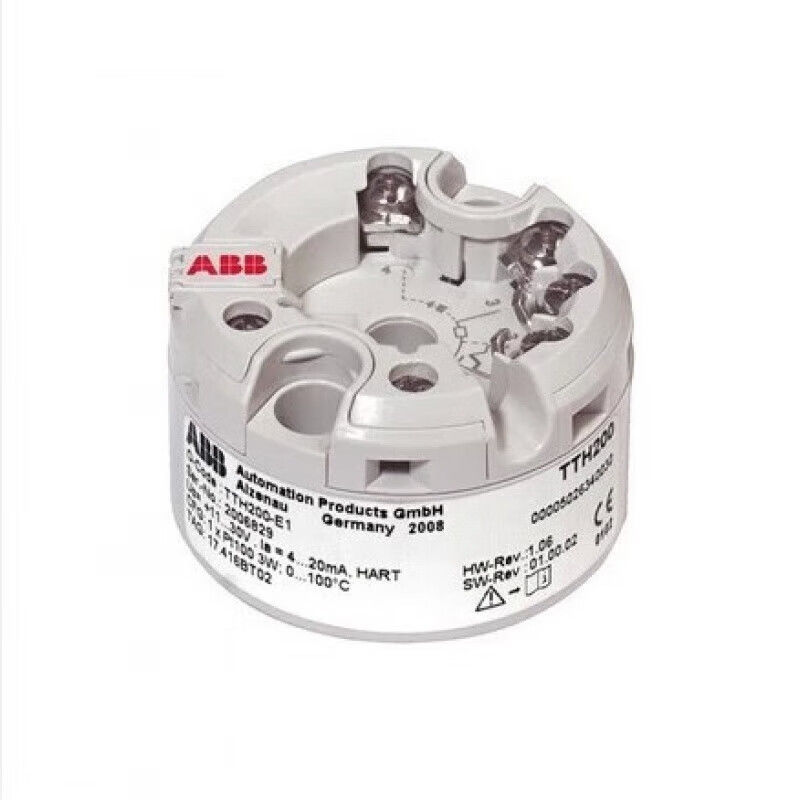

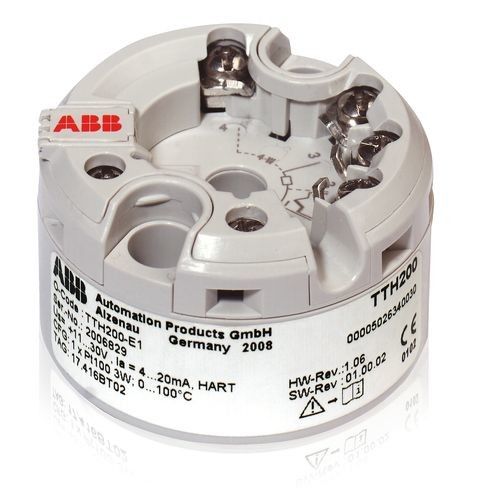

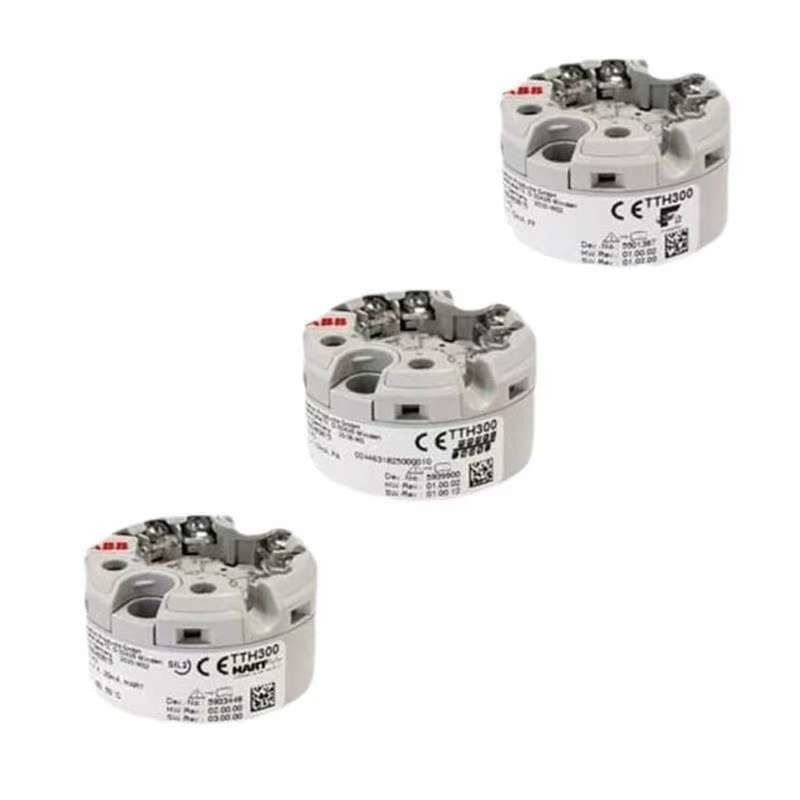

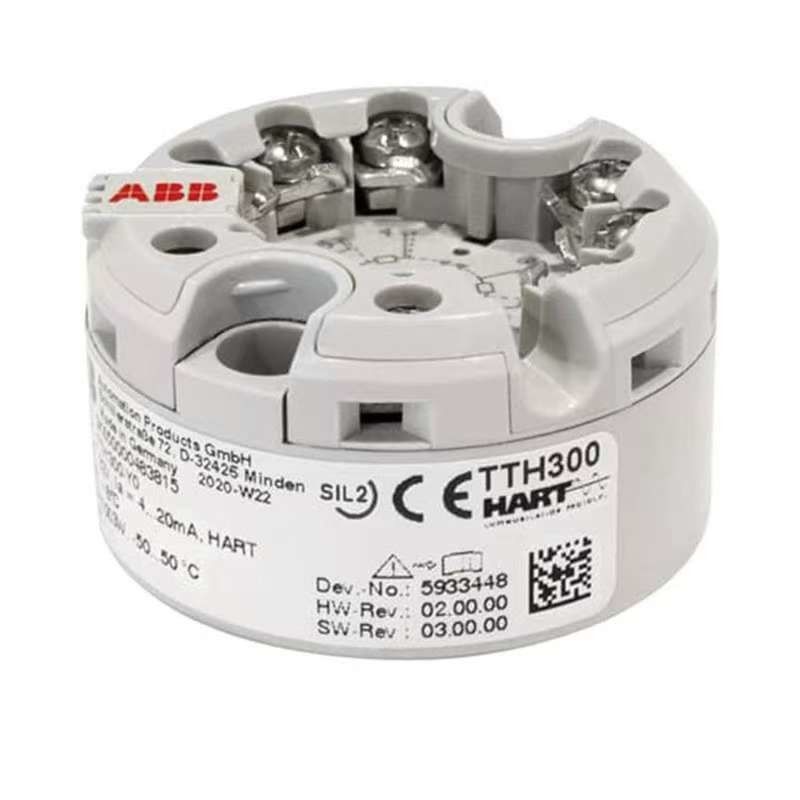

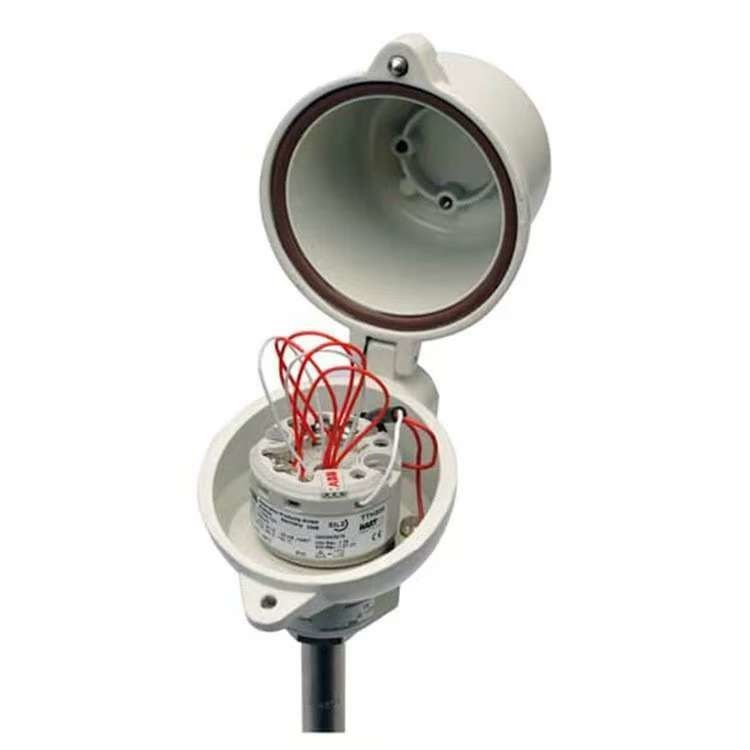

ABB Hart TTH200 Temperature Transmitter Module Temperature Sensor

• Universal sensor input
  – RTD, thermocouple, Ω, mV
• Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
• Various sensor error-calibration possibilities
  – One point, two point, Callendar-van Dusen, freestyle characteristics with 32 supporting points
• Output signal
  – 4 to 20 mA, HART 5 and HART 7 (switchable)
• Accuracy 0.1 %, long-term stability 0.05 % per year
• Wire break / corrosion monitoring in accordance with NE 89
• Device status signaling and freely configurable diagnostic categorization with diagnostic history according to NE 107
• Event monitor for logging critical events
• Configuration monitor for configuration changes
• Turnable LCD indicator for optimal readability (option)
• Approvals for explosion protection
  – ATEX, IECEx, zone 0
  – FM / CSA
  – EAC, EAC-Ex
  – NEPSI

Features:

• Input circuit and communication : Universal sensor input for resistance thermometers (RTD) and thermocouples; Communication via a 4 to 20 mA signal and the HART protocol | Device versioning in accordance with NE 53; Continuous monitoring of supply voltage; Wire break / corrosion monitoring in accordance with NE 89
• Ambient temperature: Standard: −40°C to 85°C (−40°F to 185°F) | Electrical isolation : 3.5 kV DC (approx. 2.5 kV AC), 60 s, input to output | MTBF time: 190 years at 40 °C (104 °F) mean ambient temperature | Input filter: 50 / 60 Hz | Warm-up time: 5 minutes | Rise time t90: 400 to 1000 ms | Measured value update: 10/s, independent of sensor type and sensor circuit
• Storage temperature : −50°C to 85°C (−58°F to 185°F) | Max. permissible humidity in accordance with IEC 60068-2-30: 100 % relative air humidity| Switch-on delay : < 10 s (Ia ≤ 3.6 mA during switch-on cycle) | Output filter: Digital filter 1st order: 0 to 100s | Electrical connection: Terminals with captive stainless steel screws, including soldering tags; Lines up to a maximum of 1.5 mm2 (AWG 16); Connection for handheld terminal
• Climate class in accordance with DIN EN 60654-1: Cx −40 to 85 °C (−40 to 185 °F at 5 to 95 % relative air humidity | Shock resistance in accordance with IEC 68-2-27): gn = 30, during operation and transport | IP rating : Power supply circuit: IP 20; Measurement current circuit: IP 00 or IP-rating of installation housing
• Supply Scope: 1 unit of ABB-TTH200 and Instruction Manual | Applications: Pharma, Agro-Chemical, Dairy, Pharmaceutical Equipment Manufacturers, industrial processes.
