Name: TTH200 TTH300 All - in - one Explosion - proof ABB Temperature Transmitter
Brand: Xi'an Xiyi Central Control Technology Co., Ltd.
SKU: TTH300
Price: 100.00 USD
Availability: InStock

Home > products > Temperature Instruments >

TTH200 TTH300 All - in - one Explosion - proof ABB Temperature Transmitter

Place of Origin:

China

Brand Name:

ABB

Model Number:

TTH300

Request A Quote

Product Details

Long Term Stability:

±0.1% Of Span Per Year

Certifications:

CE, RoHS, ATEX

Housing Material:

Stainless Steel

Electrical Connection:

M12x1 Connector

Output Signal:

4-20 MA

Pressure Sensing Element:

Piezoresistive

Overpressure Limit:

2 Times The Maximum Range

Wetted Parts Material:

Stainless Steel

Mounting:

Direct Or Remote

Vacuum Resistance:

10 Mbar (0.15 Psi)

Temperature Range:

-40 To 185°F

Signal Output:

4-20mA 0-20mA 1-5V 0-5V

Wetted Materials:

316L Stainless Steel

Turndown Ratio:

100:1

Ingress Protection:

IP67

Payment & Shipping Terms

Minimum Order Quantity

1 pc

Price

USD 200 1 pc

Delivery Time

7-14 days

Payment Terms

T/T

Supply Ability

100 pc 1 week

ABB Temperature Transmitter TTH300 Module HART 4-20mA Output

Get Best Price

Head Mount Temperature Transmitter TTH300 Temperature Transmitter Module

Get Best Price

TTH200 TTH300 All - in - one Explosion - proof ABB Temperature Transmitter

Get Best Price

Temperature Module ABB Temperature Transmitter TTH300 Temperature Sensor TTF200

Get Best Price

8619294892599

seth@xiyihub.com

Contact Now

Product Description

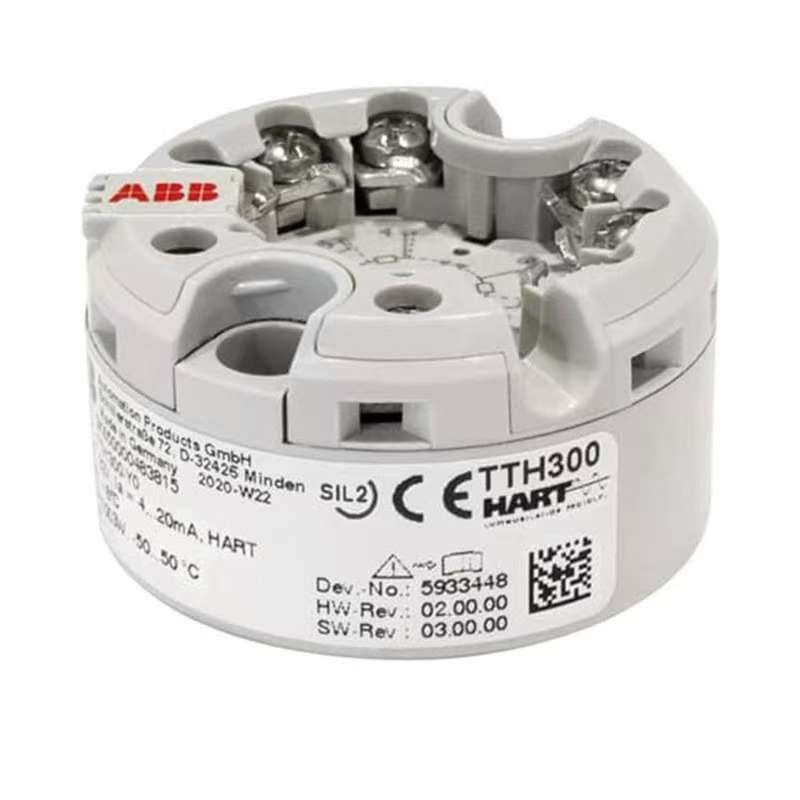

ABB Temperature Transmitter TTH300 Module HART 4-20mA Output

The two-channel temperature transmitter TTH300 with HART, PROFIBUS PA or FOUNDATION Fieldbus in two-wire technology has extensive functions and diagnostic options for all applications. For the new TTH300 HART, these have been expanded once again and the user-friendliness has been further improved.

The TTH300 is provided for the highest requirements of temperature measurement with two sensor inputs. This supports sensor redundancy and sensor drift monitoring. The transmitter follows NAMUR Recommendations such as NE 89 and NE 107. As an option, an LCD indicator with operating buttons can be connected.
The TTH300 HART can be configured with ABB-tools such as Field Information Manager (FIM), with DAT200 (Asset Vision Basic) via DTM, with a Handheld via EDD, or with any standard tool using FDI-/FDT-Technology.
Transmitter with PROFIBUS PA can be configured via GSD file, EDD or DTM, with FOUNDATION Fieldbus via EDD/CF.

Data

Two universal sensor inputs, each for RTD, thermocouple, Ω, mV
Functional safety SIL 2 / SIL 3 in accordance with IEC 61508 (HART variant)
Various sensor error-calibration possibilities
– One point, two point, Callendar-van-Dusen, freestyle characteristics with 32 supporting points
Sensor backup / automatic sensor redundancy switching (2 x Pt100 3-wire connection and further sensor combinations)
Redundancy behavior configurable for increased availability, increased safety or increased accuracy (HART variant)
Output signal
– 4 to 20 mA, HART 5 and HART 7 (switchable)
– PROFIBUS PA 3.01
– FOUNDATION Fieldbus ITK 5.x
Accuracy 0.1 %, long-term stability 0.05 % per year
Wire break / corrosion monitoring in accordance with NE 89
Device status signaling and freely configurable diagnostic categorization with diagnostic history according to NE 107 (HART variant)
Event monitor for logging critical events (HART variant)
Configuration monitor for configuration changes (HART variant)
Turnable LCD indicator with operating buttons (option)
Approvals for explosion protection
– ATEX, IECEx, zone 0
– FM / CSA
– EAC, EAC-Ex
– NEPSI

item	value
Place of Origin	Original
Brand Name	Original
Model Number	TTH300-S1H
condition	new&original
Shipping Method	Fedex/DHL/UPS/EMS/Others
Lead Time	1-5 days
