Endress Hauser Cerabar PMC 51 600psi Absolute Gauge Pressure Sensor

Endress Hauser Cerabar PMC 51 600psi Absolute Gauge Pressure Sensor

600 psi Gauge Pressure Sensor

600 psi Absolute Pressure Sensor

Place of Origin:

China

Brand Name:

E+H

Model Number:

PMC51

Contact Us
Request A Quote
Product Details
Weight:
0.5 Kg
Operating Temperature:
-40°C To 85°C
Customized Support:
OEM
Display:
4-digit LCD
Hart Protocol:
Available
Measurement Range:
0-1000 Bar
Overpressure Limit:
2 Times The Maximum Range
Long-Term Stability:
≤0.2% Of Full Scale Per Year
Flange Material:
316SST
Communication Protocol:
HART
Long Term Stability:
±0.1% Of Span Per Year
Wetted Materials:
316L Stainless Steel
Protection Rating:
IP67
Response Time:
≤10ms
Turndown Ratio:
100:1
Highlight:

600 psi Gauge Pressure Sensor

,

600 psi Absolute Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
USD 600 1 pc
Delivery Time
7-14 days
Payment Terms
T/T
Supply Ability
100 pc 1 week
Product Description

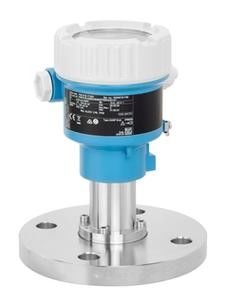

Endress Hauser Cerabar PMC 51 600psi Absolute Gauge Pressure Sensor



Field of application

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

Single chamber aluminum or stainless steel (316L) housing.

  • Process connections: Threads, flanges or hygienic connections
  • Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
  • Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)
  • Accuracy: ±0.1%, "Platinum" ±0.075%
  • International explosion protection certificates, SIL, hygienic approvals, marine approvals

Benefits

  • Best fit for vacuum applications and applications with corrosive and abrasive media
  • Process safety through membrane breakage detection
  • Overload-resistant high purity ceramic sensor (99.9% Al2O3)
  • Condensation resistant also for hygienic applications
  • Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
  • Process pressure up to SIL2, certified to IEC 61508 and IEC 61511
  • Available with mounted manifolds: always fit, always tested for leaks
