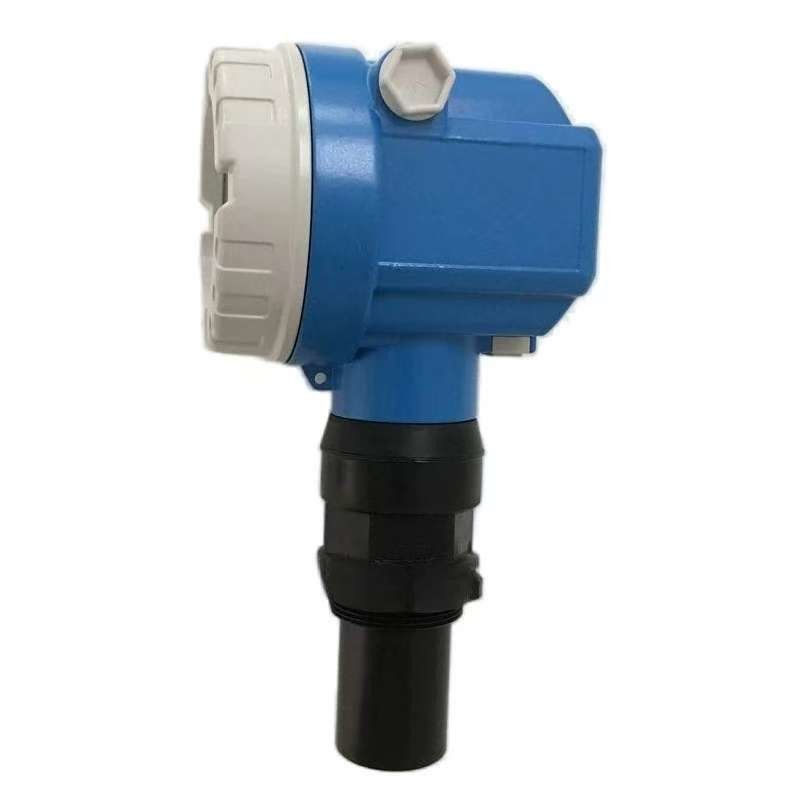

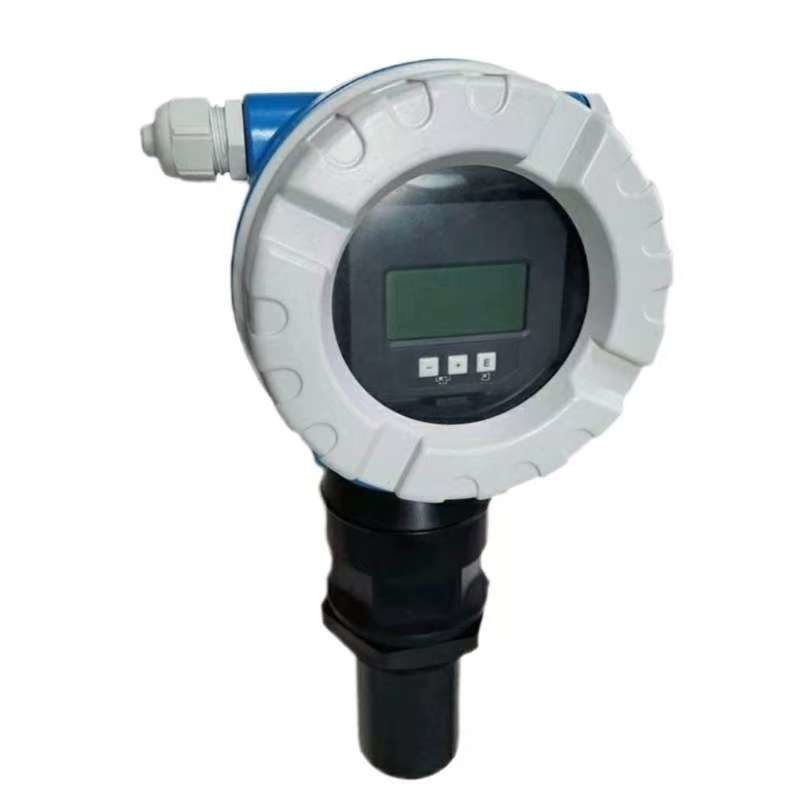

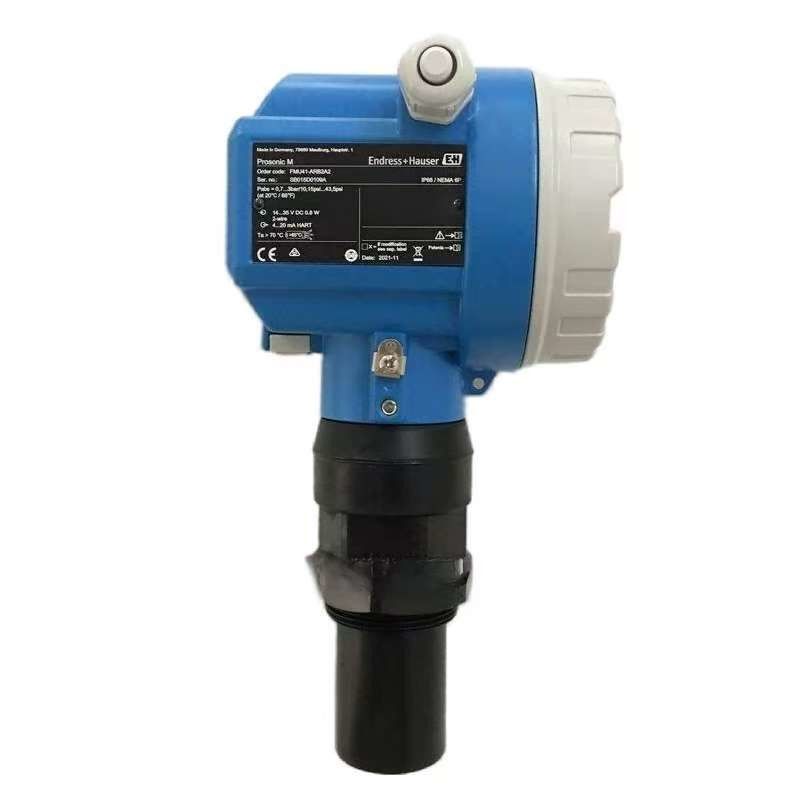

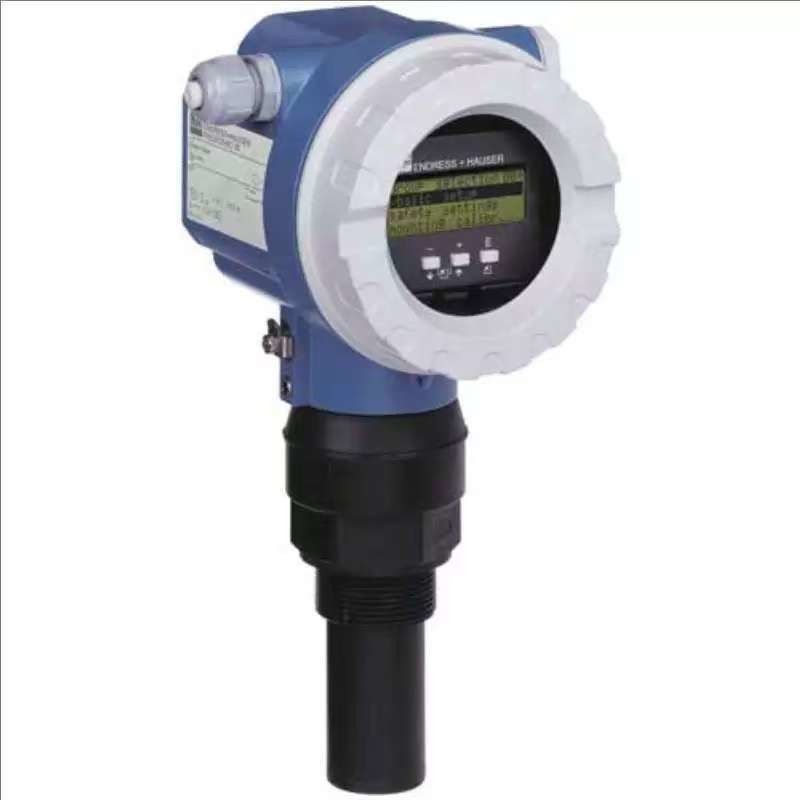

ENDRESS+HAUSER FMU41-1RB2A2 Ultrasonic Measurement Time-of-Flight Prosonic FMU41

ENDRESS+HAUSER FMU41-1RB2A2 Ultrasonic Measurement Time-of-Flight Prosonic FMU41

Field of application

The Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Two-wire or four wire instrument for continuous non-contact level and flow measurement.

• Process connection: Thread
• Temperature: -40 to +80°C (-40 to +176°F)
• Pressure: +0.7 to +3bar (+10 to +44psi)
• Maximum measuring distance: Liquids 8m (26ft), Solids 3.5m (11ft)
• Blocking distance: Liquids and Solids 0.35m (1.15ft)
• International explosion protection certificates

Benefits

• Reliable non-contact measurement

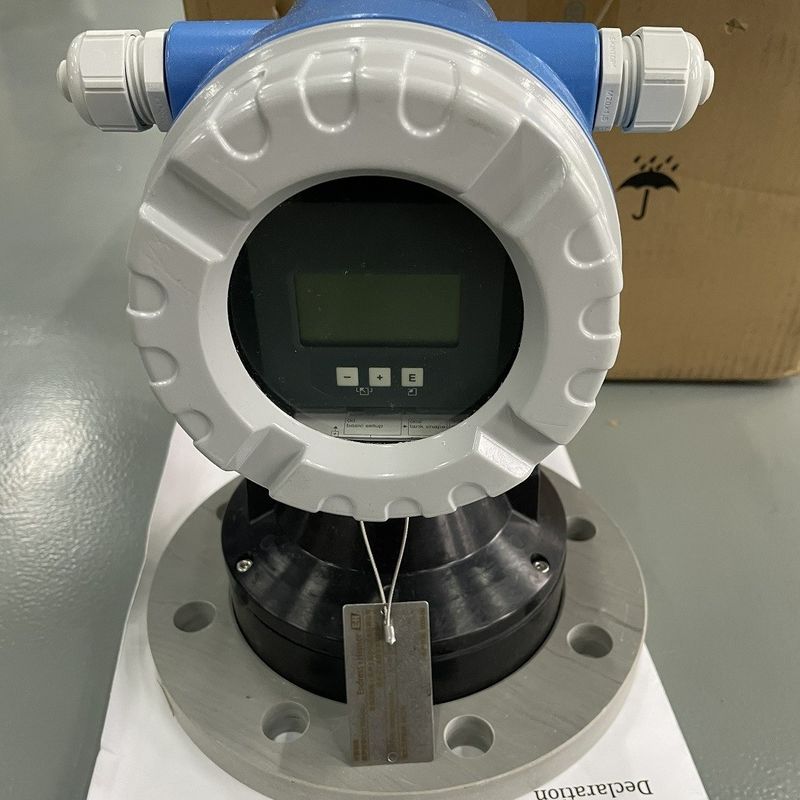

• Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
• Envelope curves on the on-site display for simple diagnosis
• Hermetically sealed and potted sensor
• Chemically resistant sensor out of PVDF
• Calibration without filling or discharging
• Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
