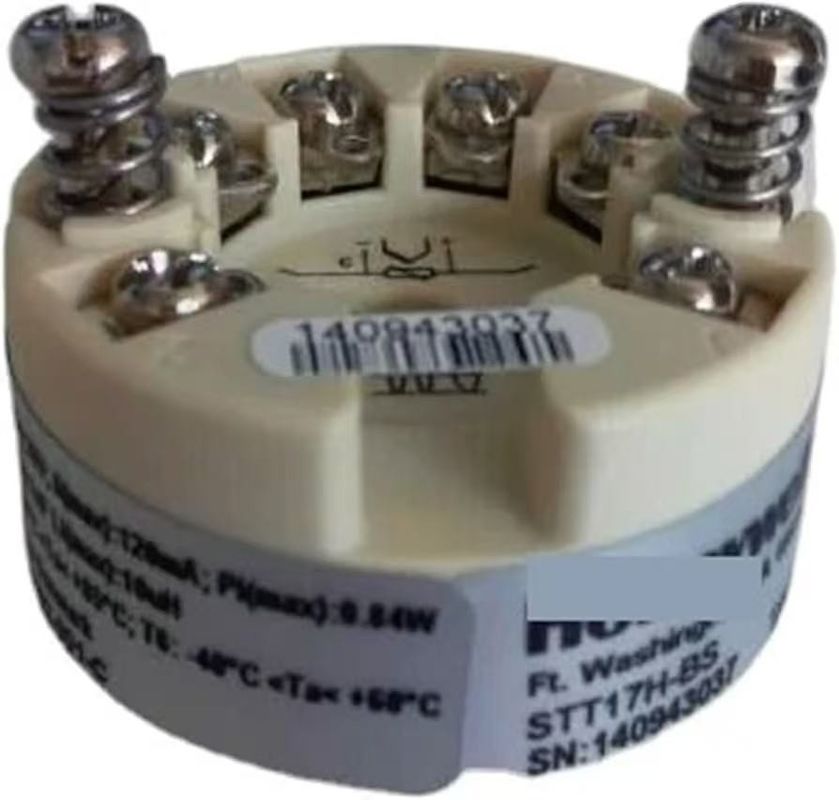

Honeywell STT170 Smart Temperature Transmitter STT17H-BS-0-000-000-L00-00

Honeywell STT170 Smart Temperature Transmitter STT17H-BS-0-000-000-L00-00

Overview

The Honeywell STT170 series of programmable temperature transmitters provide cost-effective solutions for temperature monitoring applications. Compared to direct-wired temperature sensor monitoring points, the STT170 series of transmitters delivers increased accuracy, safety and reliability while also reducing wiring costs. These transmitters automatically linearize the temperature output signal bounded by the upper range value and lower range value established by the user. In addition, the user can program high or low limit alarms to activate in the case of sensor failure.

STT171 Features

Analog 4-20 mA output.

RTD or Ohm input.

DIN form B head mount.

NAMUR NE43 sensor error response.

Configurable using STT17C configuration tool and PC.

STT173 Features

Analog 4-20 mA output

RTD, T/C, Ohm or mV input

DIN form B head mount

NAMUR NE43 sensor error response

Configurable using STT17C configuration tool and PC

Galvanic isolation

STT17H Features

HART™/4-20 mA output

RTD, T/C, Ohm or mV input

Single or dual (difference or average) sensor input

DIN form B head mount

HART Multidrop capable

NAMUR NE43 sensor error response
