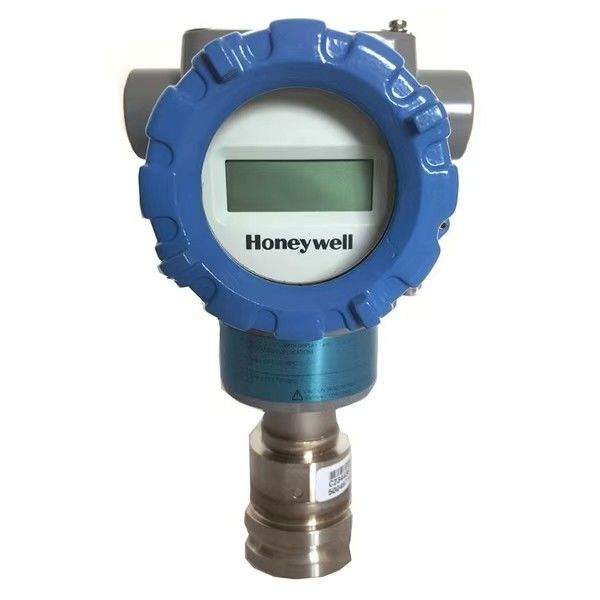

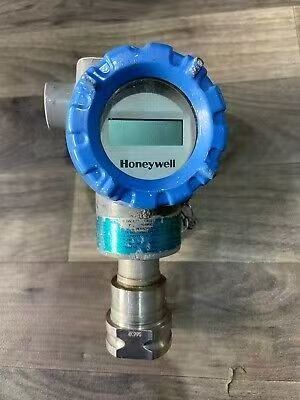

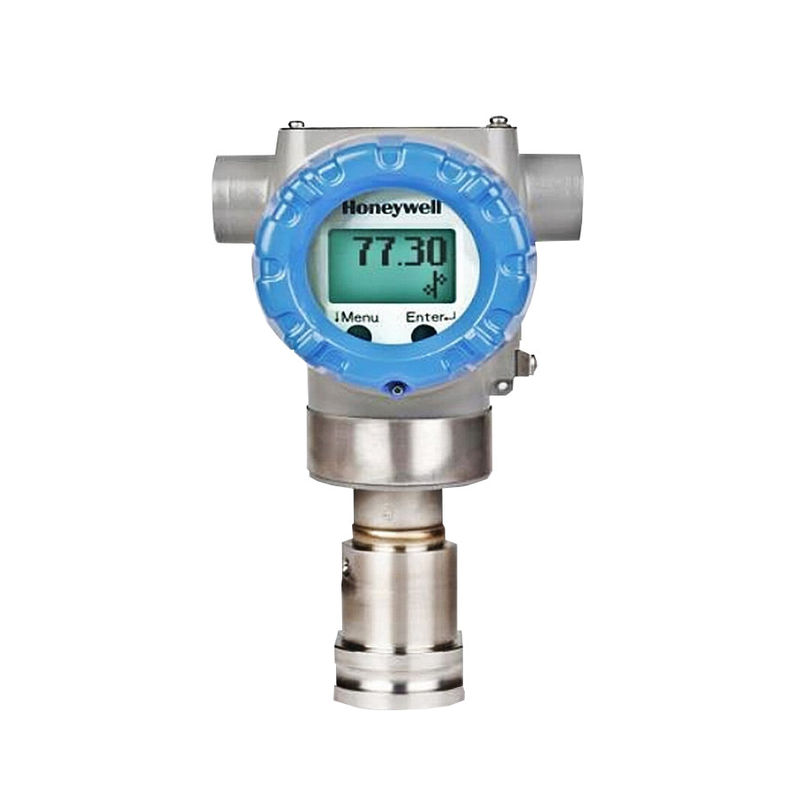

SmartLine Pressure Transmitter STG74L Level Applications with Process Temperatures up to 125°C

SmartLine Pressure Transmitter STG74L Level Applications with Process Temperatures up to 125°C

Introduction

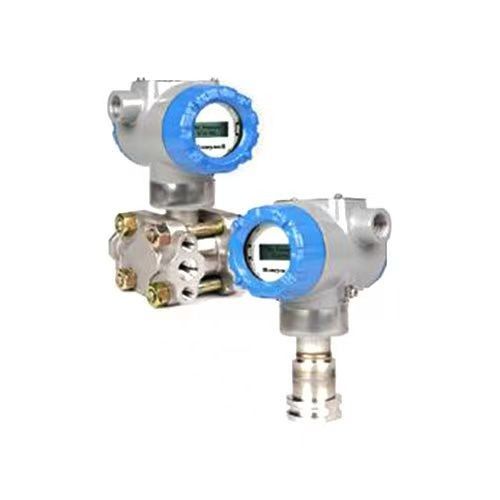

Part of the SmartLine® family of products, the STG700 and STG70L are suitable for monitoring, control and data acquisition. STG70X products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of
application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance
and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Features:

•  Accuracies up to 0.055% of span standard & 0.04% of span optiona
•  Stability up to 0.02% of URL per year for 10 years
•  Automatic temperature compensation
•  Rangeability up to 100:1
•  Response times as fast as 100ms
•  Alphanumeric display capabilities
•  External zero, span, & configuration capability
•  Polarity insensitive electrical connections
•  On-board diagnostic capabilities
•  Integral Dual Seal design for safety based on
• ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
•  Full compliance to SIL 2/3 requirements as a standard.
•  Modular design characteristics

• Honeywell Digitally Enhanced (DE)
• HART ® (version 7.0)
• FOUNDATION™ Fieldbus

All transmitters are available with the above listed communications protocols.
