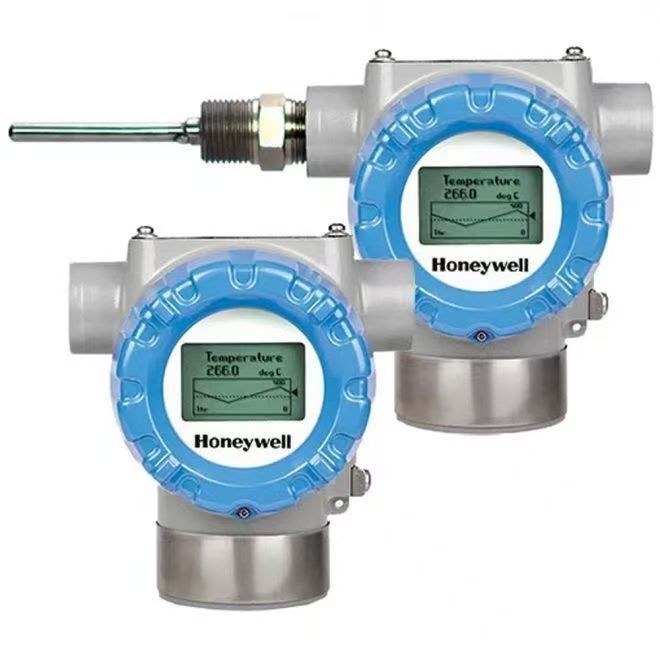

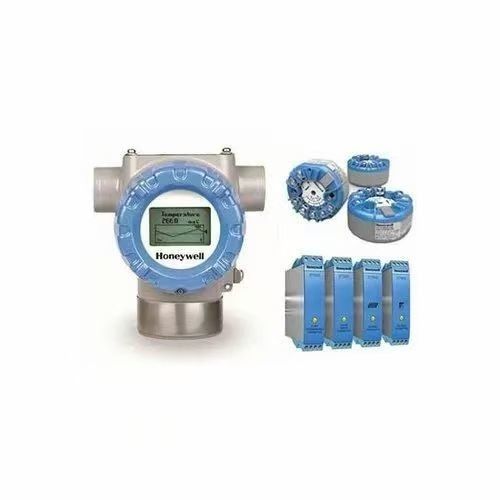

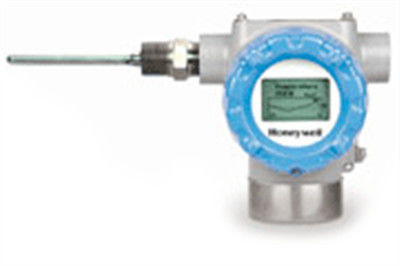

STT750 Smartline Modular Temperature Transmitter Cost-Effective Hygrometer for Process Control

STT750 Smartline Modular Temperature Transmitter Cost-Effective Hygrometer for Process Control

Introduction

Part of the SmartLine® family of products, the SmartLine STT750 is a high-performance and value temperature transmitter offering high accuracy and stability over a wide range of process and ambient temperatures. SmartLine easily meets the most demanding needs for temperature measurement applications.

Best in Class Features:

Industry leading performance value

o Digital Accuracy up to .14 Deg C for RTD

o Stability up to +/-0.01% of URL per year for ten years

o 125 mSec update time for single input models.

o 250 mSec update time for dual input models.

Reliable measurement

o Built in Galvanic Isolation

o Dual Compartment Housing

o Sensor Break detection

o Comprehensive on-board diagnostic capabilities

o Full compliance to SIL 2/3 requirements.

o Available with 4 year warranty

o Supports Namur 89 Wire break

o Direct entry of Callendar-van Dusen coefficients R0, α, δ and β for calibrated RTD sensors.

Lower Cost of Ownership

o Universal input

o Standard digital display capabilities

o Modular construction

o External zero, span, & configuration capability

o Polarity insensitive loop wiring

Communications/Output Options:

o 4-20 mA DC

o HART ® (version 7.0)

All transmitters are available with the above listed output and communication protocol option.

Description

The STT750 SmartLine Temperature Transmitter is designed and manufactured to deliver high performance across varying ambient temperature.

Unique Indication/Display Options

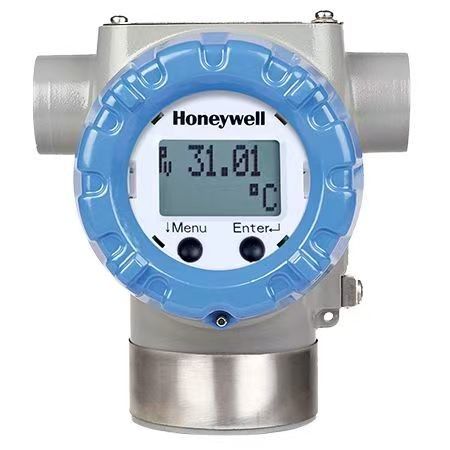

The STT750 modular design accommodates a Standard LCD display.

Standard LCD Display Features

o Modular (may be added or removed in the field).

o 0, 90,180, & 270-degree position adjustments.

o Deg C, F, R, Kelvin, Milli volts, and Ohm measurement units.

o 2 Lines 6 digits PV (9.95H x 4.20W mm), 8 Characters.

o Device configuration and calibration through integral buttons or optional external buttons.

o Up to 4 configurable display screens.

o Configurable screen rotation timing (2 to 20 sec).

o Write protect indication.

o Critical fault indication.

Configuration Tools

Integral Three Button Configuration Option

Suitable for all electrical and environmental requirements, SmartLine offers the ability to configure the transmitter and display via two buttons on the display and optional three externally accessible buttons. The button compartment is isolated from other internal components and thus keeps the sensitive electronics environmentally sound.

Zero/span capabilities are also optionally available via these buttons with or without selection of a display option.

Handheld Configuration

SmartLine transmitters feature two-way communication and configuration capability between the operator and the transmitter. This is accomplished via Honeywell Versatilis, a field-rated, next-generation multiple communication configuration tool.

The Honeywell Versatilis Handheld is capable of field configuring HART Devices and can also be ordered for use in intrinsically safe environments.

All Honeywell transmitters are designed and tested for compliance with the offered communication protocols and are designed to operate with any properly validated hand-held configuration device.

Personal Computer Configuration

Field Device Manager (FDM) Software and FDM Express are also available for managing HART device configurations.

Diagnostics

SmartLine transmitters all offer digitally accessible diagnostics which aid in providing advanced warning of possible failure events minimizing unplanned shutdowns, providing lower overall operational costs

System Integration ‘

o All SmartLine products meet the most current published standards for HART.

Modular Design

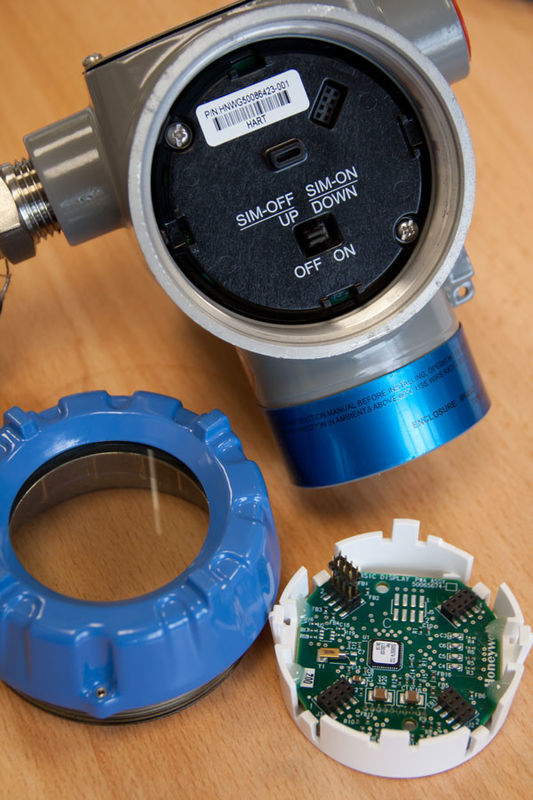

To help contain maintenance and inventory costs, all STT750 transmitters are modular in design supporting the user’s ability to replace temperature boards, add indicators or change electronic modules without affecting overall performance or approval body certifications.

Each temperature board is uniquely characterized to provide in-tolerance performance over a wide range of application variations in temperature and due to the Honeywell advanced interface, electronic modules may be swapped with any electronics module without losing in-tolerance performance characteristics

Modular Features

o Replace temperature board, terminal board, or lightning protection*

o Replace electronics or communication modules*

o Add or remove integral indicators*

o Add or remove external configuration buttons

* Field replaceable in all electrical environments (including IS) except flameproof without violating agency approvals. With no performance effects, Honeywell’s unique modularity results in lower inventory needs and lower overall operating costs.
