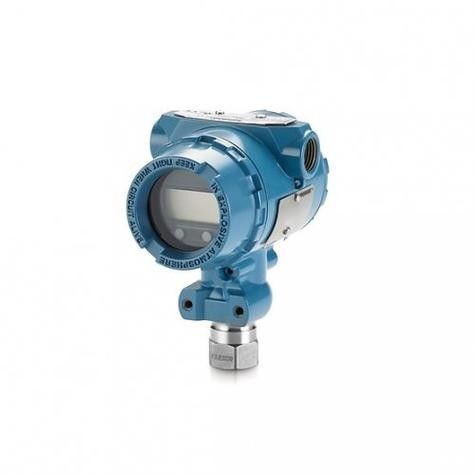

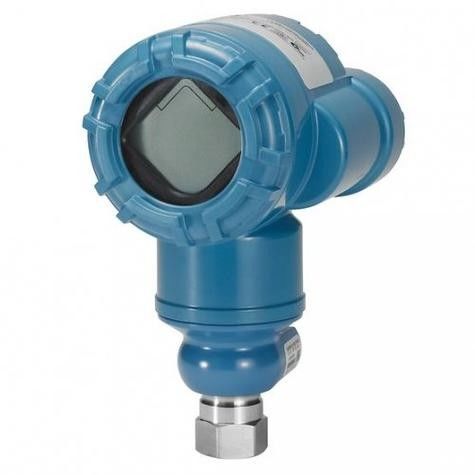

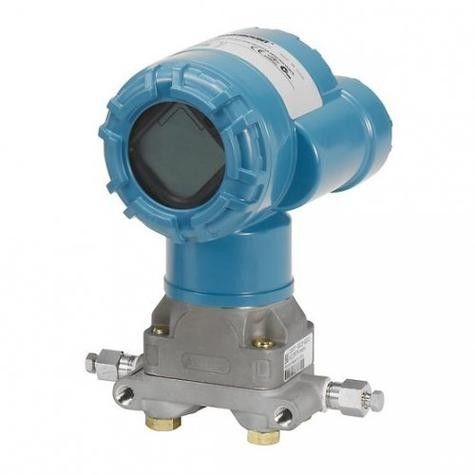

Rosemount 2051 Pressure Transmitters Differential And Gauge Pressure Transmitter With 4-20MA Output

Rosemount 2051 Pressure Transmitters Differential And Gauge Pressure Transmitter With 4-20MA Output

Rosemount 2051 Pressure Transmitters Rosemount 2051 Pressure Transmitters
The Rosemount 2051 family of pressure transmitters empowers you to measure pressure with confidence.

The 2051 provides a reliable differential, gage, and absolute pressure measurement with a variety of output protocols, materials and process connections. Meet your pressure, level, and flow application needs with its flexible Coplanar™ platform so that you can lower project and ongoing maintenance costs.

Need to deploy points quickly or reduce installation costs? Consider using the Rosemount 2051 Wireless for new projects across your facility.

2051 transmitter

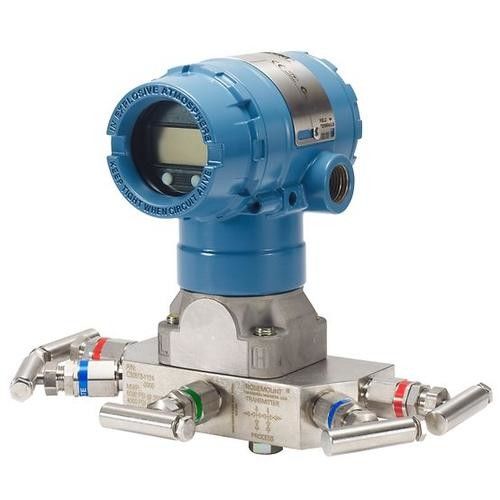

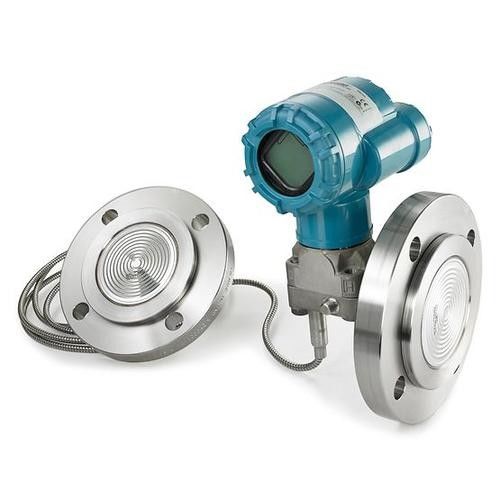

Rosemount Coplanar™ platform enables integration of primary elements, manifolds, and remote seal
solutions
Best in Class performance with up to 0.05% high accuracy option
IEC 62591 (WirelessHART®) Protocol enables cost effective installations
Local Operator Interface (LOI) offers easy to use configuration capabilities at the transmitter
Protocols available include HART® 4–20 mA, FOUNDATION™ Fieldbus, PROFIBUS® PA, HART 1–5 Vdc Low
Power
Selectable HART Revision prepares your plant for the latest HART capabilities while ensuring seamless
integration with today’s systems
SIL2/3 safety certification to IEC 61508 is available with the full 4–20 mA HART offering to simplify
compliance

Specifications
