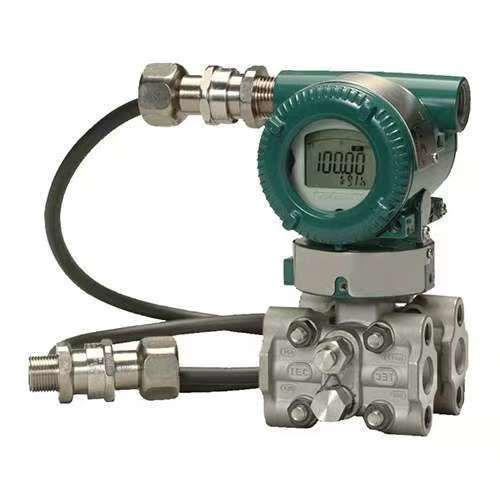

Name: 100% High-quality Yokogawa EJX120A High-performance Differential Pressure Transmitter
Brand: Xi'an Xiyi Central Control Technology Co., Ltd.
SKU: EJX210A
Price: 250.00 USD
Availability: InStock

Home > products > Differential Pressure Transmitter >

100% High-quality Yokogawa EJX120A High-performance Differential Pressure Transmitter

Place of Origin:

China

Brand Name:

YOKOGAWA

Model Number:

EJX210A

Request A Quote

Product Details

Full Load Power:

Product:

FOXBORO Valve Positioner

Mounting Type:

Threaded

Vibration:

20HZ-1KHZ To Mechanical Vibration

Output:

4-20mA/HART Protocol

Protection Rating:

IP65

Hs Code:

9026201090

Response Time:

90 Ms

Protection Class:

IP 65 Pressure Transmitter

Product Features:

Good Safety, Strong Adaptability

Pressure:

-0.1MPa ~ 0 ~ 100MPa

Customized Support:

OEM

Span:

0.3-10000psi

The Process Temperature:

-40-120℃

Payment & Shipping Terms

Minimum Order Quantity

1 pc

Price

USD 500 1 pc

Delivery Time

7-14 days

Payment Terms

T/T

Supply Ability

100 pc 1 week

Industrial Pressure Transmitter EJX120A Low Price 420ma Draft Range Differential Pressure Sensor

Get Best Price

New Original Yokogawa Pressure Transmitter EJXC81A EJAC81E EJX110A EJX120A EJX130A

Get Best Price

Yokogawa EJX110A EJX120A EJX130A 4-20mA Differential Liquid Pressure Transmitter

Get Best Price

video

EJX130A Series High Static DP Transmitter ATEX/IECEx Certified Pressure Sensor

Get Best Price

8619294892599

seth@xiyihub.com

Contact Now

Product Description

100% High-quality Yokogawa EJX120A High-performance Differential Pressure Transmitter

Ordering Information

Model: EJX120A - Differential pressure transmitter
Output signal: -E - 4 to 20 mA DC with digital communication (HART 5 protocol)
Measurement span (capsule): E - 0.025 to 1 kPa (0.1 to 4 inH2O)
Wetted parts material?: S
Cover flange and process connector: ASTM CF-8M?
Capsule: Hastelloy C-276? (Diaphragm); F316L SST, 316L SST (Others)
Capsule gasket: Teflon-coated 316L SST
Vent/Drain plug: 316 SST
Process connections: 4 - with 1/2 NPT female process connector
Bolts and nuts material: J - B7 carbon steel
Installation: -7 - Vertical piping, left side high pressure, and process connection downside
Amplifier housing: 1 - Cast aluminium alloy
Electrical connection: 2* - 1/2 NPT female, two electrical connections without blind plugs
Integral indicator: E - Digital indicator with the range setting switch (push button)⁴
Mounting bracket: N - None

The " * " marks indicate the most typical selection for each specification.

Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids.
Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.
Cast version of 316 SST. Equivalent to SCS14A.
Hastelloy C-276 or ASTM N10276.
Not applicable for output signal code F.
