Differential Pressure Transmitter EJXC40A EJX130A Series Yokogawa Motor

Differential Pressure Transmitter EJXC40A EJX130A Series Yokogawa Motor

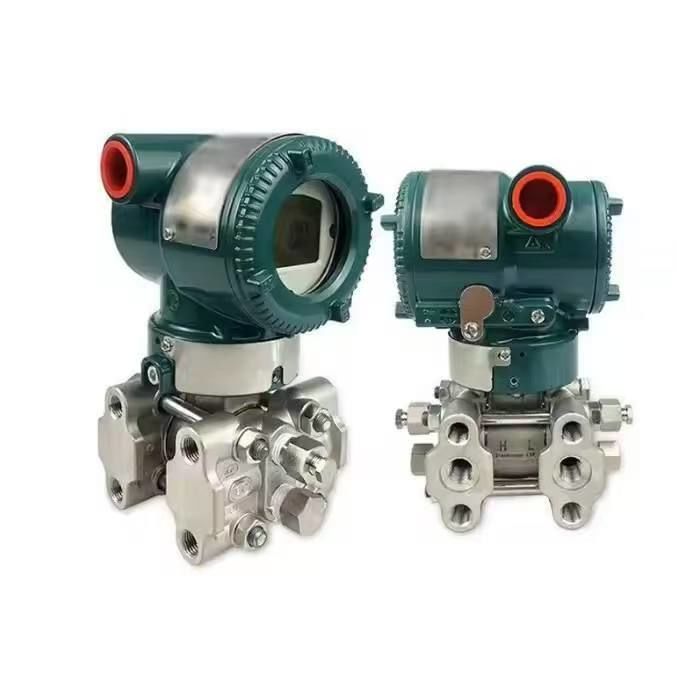

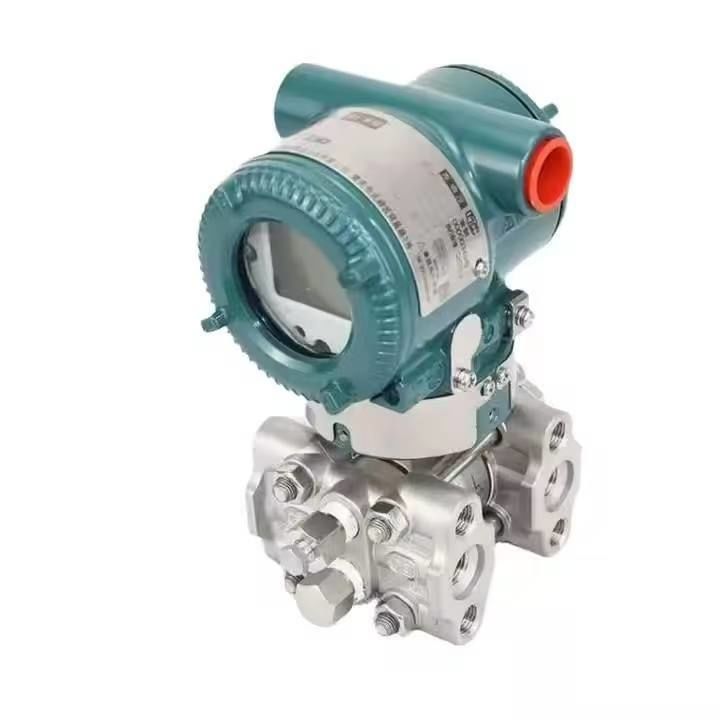

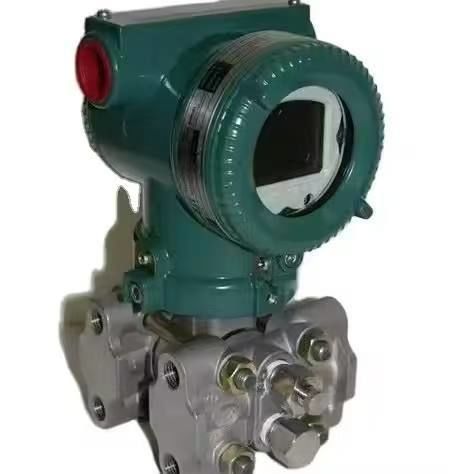

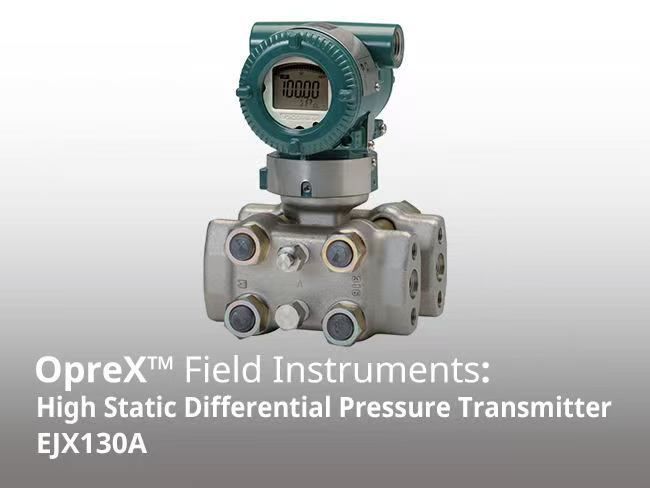

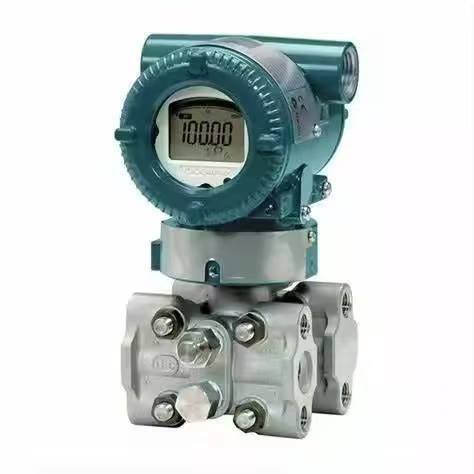

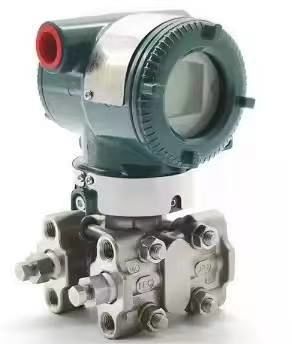

 The Yokogawa high performance differential pressure transmitter EJX130A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJX110A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications.

Other key features includequick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.

All EJX series models in their standard confi guration, with the exception of the Fieldbus and PROFIBUS types, are certifi ed as complying with SIL 2 for safety requirement.

EJX-A series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified as complying with SIL 2 safety requirements.

• ± 0.04% Accuracy (0.025% Accuracy option available)
• ± 0.1% per 15 years Stability
• 90 ms Response Time
• 3,600 psi MWP
• Exida and TUV SIL2 / SIL3 Certified
• Local Parameter Setting (LPS)
