Place of Origin:
China
Brand Name:
XYZK
Model Number:
3351 CDY
Range and range
|
Range code |
Minimum range |
Maximum range |
Rated pressure (maximum value) |
|
B |
1 kPa |
6 kPa |
Rated pressure of liquid level flange |
|
C |
6 kPa |
40 kPa |
|
|
D |
40 kPa |
400 kPa |
|
|
E |
400 kPa |
4 MPa |
Relationship between liquid level flange and minimum range
|
Liquid level flange |
nominal diameter |
Minimum range |
|
|

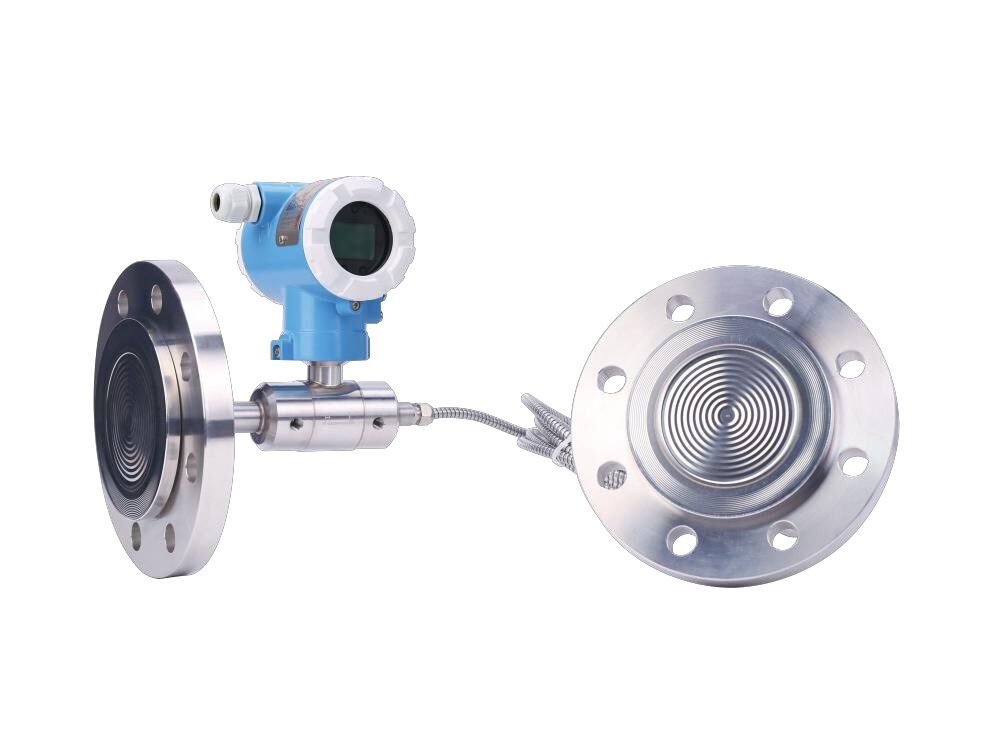

One-sided long-distance transmission |

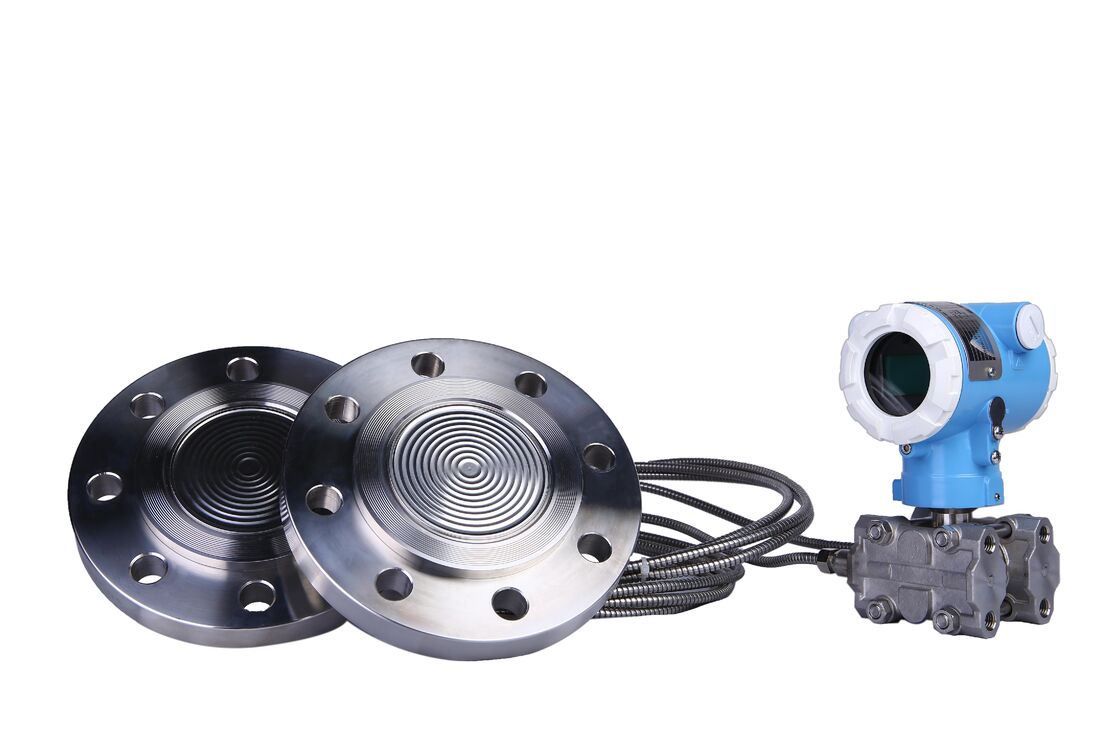

Bilateral remote transmission |
||
|
flat membrane |
DN 50/2" |
10 kPa |
10 kPa |
|
DN 80/3" |
6 kPa |
1 kPa |
|
|
DN 4" |
6 kPa |
1 kPa |
|
|
Plug type |
DN 50/2" |
10 kPa |
10 kPa |
|
DN 80/2" |
6 kPa |
1 kPa |
|
|
DN 4" |
6 kPa |
1 kPa |
|
Level flange rated pressure
PN series : PN 2.5 ~ PN 160
Class series: Class 150 ~ Class 250 0
Unidirectional overload limit
overload limits on the high and low pressure sides are the rated pressure of the liquid level flange , and correctable zero-point drift may occur .
