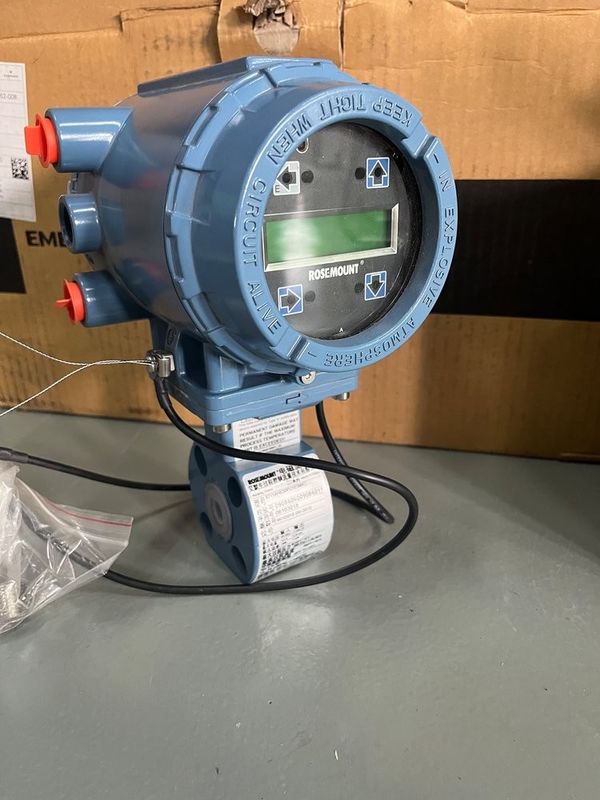

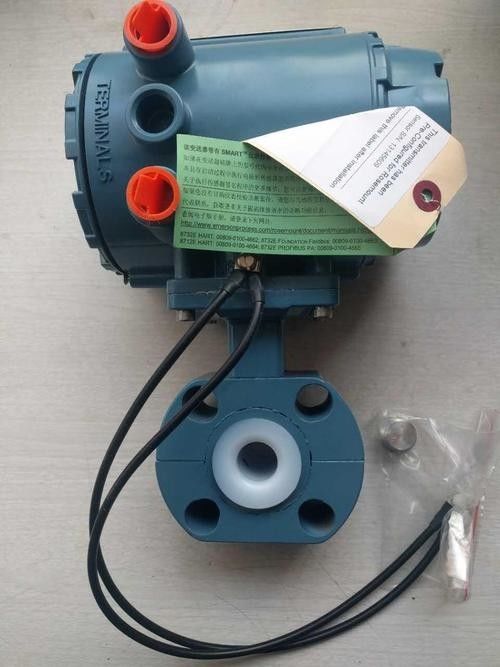

Rosemount Magnetic Flowtube 8711 Flow Sensor With Transmitter 8732EST1A1N0M4

Rosemount Magnetic Flowtube 8711 Flow Sensor With Transmitter 8732EST1A1N0M4

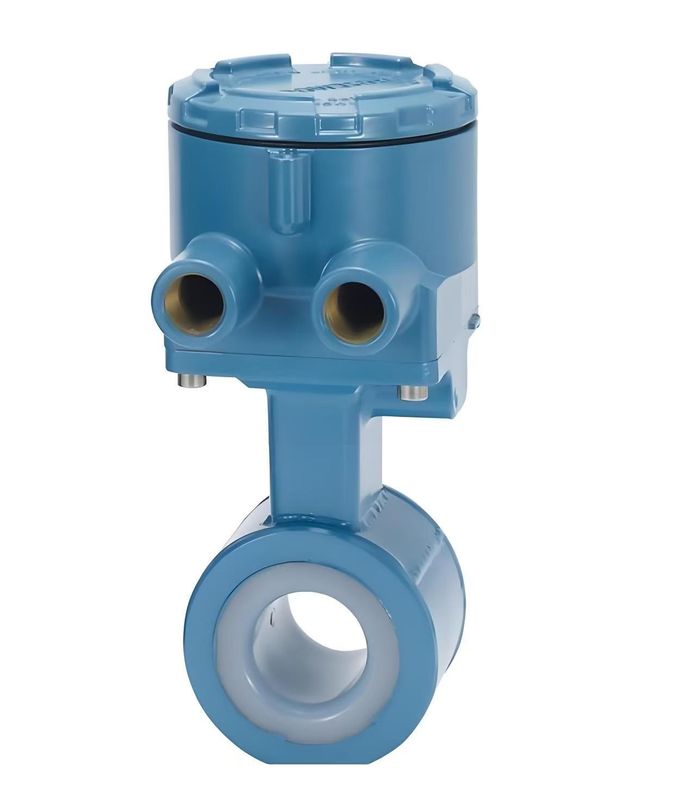

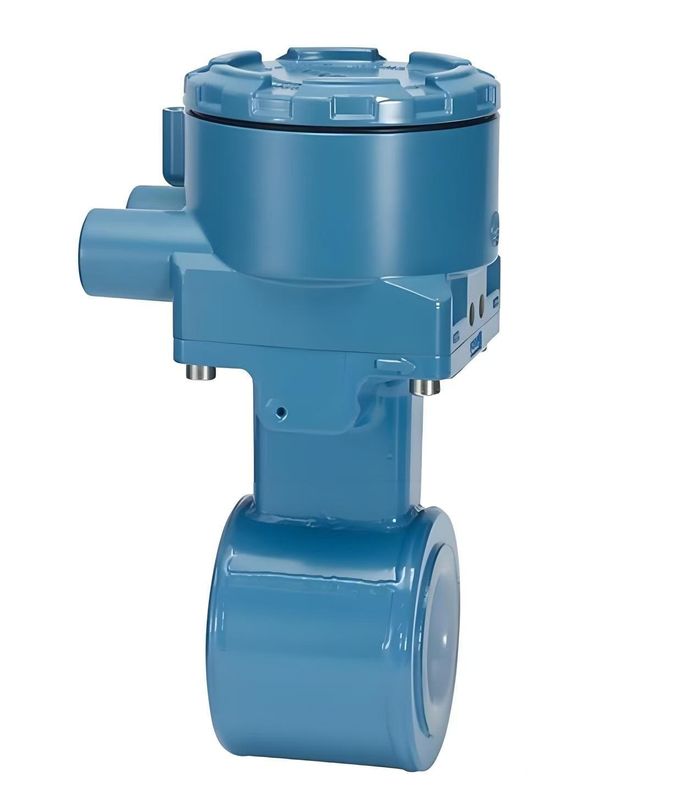

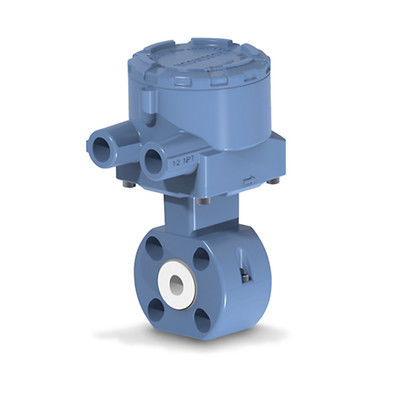

The Rosemount 8711 wafer flowtube sensor is designed for conductive liquids. The Rosemount 8711 is available in line sizes from 0.15 through 8 inches with a wide range of electrode materials to meet your needs.

The flangeless design of the Rosemount 8711 wafer flowtube sensor makes it an economical, compact and lightweight alternative to flanged magnetic flowmeters. Alignment rings provided with every Rosemount 8711, center the flowtube sensor in the process line for easy installation.

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.

The Rosemount 8711 flowtube sensors are interchangeable with both the 8732E and 8712D transmitters. System accuracy on the Rosemount 8711 wafer flowtube is maintained regardless of line size or optional features. Each flowtube sensor nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator Interface (LOI) or the HART Communicator - depending on model.
