Place of Origin:
China
Brand Name:
Yokogawa
Model Number:
AXG200
Introduction

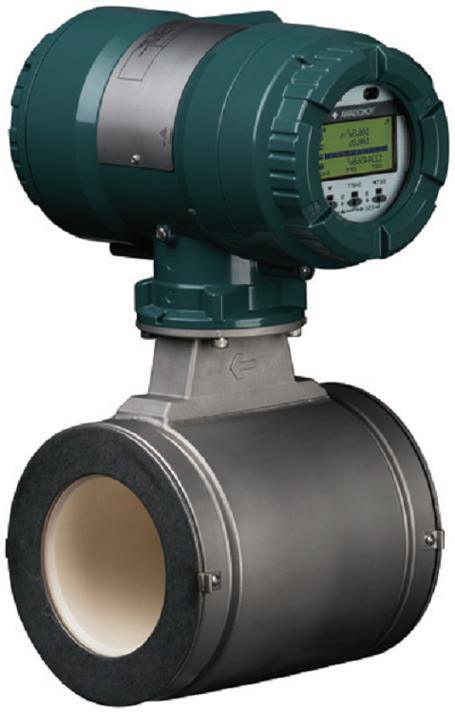

The ADMAG TI Series AXG (including the AXG200 size) is an advanced electromagnetic (magnetic) flowmeter designed for industrial process lines.
“AXG200” indicates a nominal size of 200 mm (8 in) for that particular variant.
Key aspects include:
Short Specification Table
|
Category |
Specification / Description |
|
Manufacturer |
Yokogawa |
|
Model |
ADMAG AXG200 |
|
Type |
Electromagnetic (magnetic) flowmeter |
|
Nominal Size |
DN 200 (8 in) |
|
Measurement Principle |
Faraday’s law – voltage induced by conductive fluid in a magnetic field |
|
Size Range of Series |
2.5 to 500 mm (0.1″ to 20″) for AXG series in general |
|
Lining Materials |
PFA (fluorocarbon) or Ceramics tube |
|
Electrode Materials |
Various options (e.g., stainless steel 316L, nickel alloy, tantalum, platinum-iridium) |
|
Accuracy (typical) |
±0.3% of rate (standard) ; high accuracy option ±0.15% (for certain sizes) |
|
Process Connection |
ASME, EN, JIS etc flange/wafer types—various specifications |
|
Key Features |
Dual-frequency excitation; built-in diagnostics; modern comms (HART, FOUNDATION, PROFIBUS, EtherNet/IP) |
|
Applications |
Industrial liquids with conductivity; large pipelines; process conditions with disturbance/slurry etc |
|
Limitations / Notes |
Fluid must be conductive; selection of liner/electrode must match fluid corrosion/abrasion; ensure correct size & installation |
.
