Place of Origin:
China
Brand Name:
E+H
Model Number:
5P3B
| Attribute | Value |
|---|---|
| Turndown Ratio | 100:1 |
| Display Type | LCD |
| Power | Electric |
| Long Term Stability | ±0.1% of span per year |
| Output Signal | 4-20 mA |
| Vacuum Resistance | 10 mbar (0.15 psi) |
| Ingress Protection | IP67 |
| Diaphragm Material | 316L Stainless Steel |
| Pressure Sensing Element | Piezoresistive |
| Customized Support | OEM |
| Flange Material | 316SST |
| Overpressure Limit | 2 times of full scale range |
| Process Connection | 1/2" NPT |
| Range | 0-10,000 psi |
| Accuracy | ±0.1% of span |

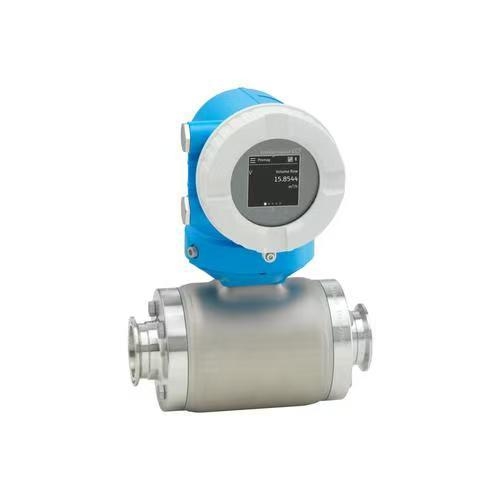

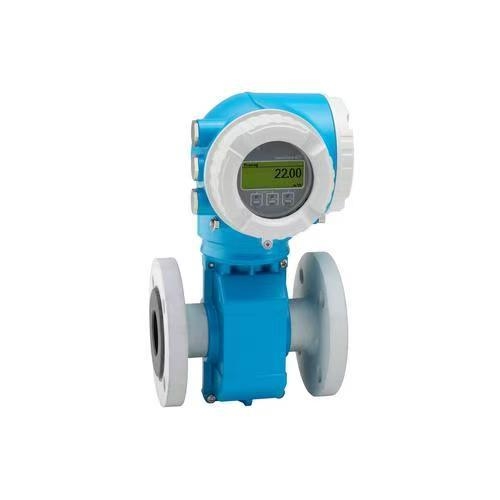

High-temperature flowmeter for process applications with a compact, easily accessible transmitter. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.
Nominal diameter range: DN 15 to 600 (½ to 24")
Wetted materials: Liner: PFA; PTFE. Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
Measured variables: Volume flow, conductivity, mass flow
Max. measurement error: Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s). Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
Measuring range: 4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
Max. process pressure: PN 40, Class 300, 20K
Medium temperature range: Liner material PFA: -20 to +150 °C (-4 to +302 °F). Liner material PFA high-temperature: -20 to +180 °C (-4 to +356 °F). Liner material PTFE: -40 to +130 °C (-40 to +266 °F)
Ambient temperature range: Flange material carbon steel: -10 to +60 °C (+14 to +140 °F). Flange material stainless steel: -40 to +60 °C (-40 to +140 °F)
