Name: Endress+Hauser Proline Promag P300 Electromagnetic Flowmeter 4-20mA
Brand: Xi'an Xiyi Central Control Technology Co., Ltd.
SKU: 5P3B
Price: 500 USD
Availability: InStock

Home > Products > Digital Flow Meter >

Endress+Hauser Proline Promag P300 Electromagnetic Flowmeter 4-20mA

Proline Promag P300 flowmeter 4-20mA

electromagnetic flowmeter with warranty

digital flow meter 4-20mA output

Place of Origin:

China

Brand Name:

E+H

Model Number:

5P3B

Chat Now

Request A Quote

Product Details

Turndown Ratio:

100:1

Display Type:

LCD

Power:

Electric

Long Term Stability:

±0.1% Of Span Per Year

Output Signal:

4-20 MA

Vacuum Resistance:

10 Mbar (0.15 Psi)

Ingress Protection:

IP67

Diaphragm Material:

316L Stainless Steel

Pressure Sensing Element:

Piezoresistive

Customized Support:

OEM

Flange Material:

316SST

Overpressure Limit:

2 Times Of Full Scale Range

Process Connection:

1/2" NPT

Range:

0-10,000 Psi

Accuracy:

±0.1% Of Span

Highlight:

Proline Promag P300 flowmeter 4-20mA

electromagnetic flowmeter with warranty

digital flow meter 4-20mA output

Payment & Shipping Terms

Minimum Order Quantity

1 pc

Price

USD500

Delivery Time

7-14 days

Payment Terms

T/T

Supply Ability

100 pc 1 week

100% New Original Proline Promass I100 8I1B Ultra-Compact Transmitter In-Line Viscosity Flow Measurement OEMFor E Ndress H Auser

Chat Now

Proline Promass I100 8I1B Ultra-Compact Transmitter 100% New Original for Inline Viscosity Flow Measurement OEM for Liquid

Chat Now

Endress+Hauser Proline Promass I 500 Coriolis Flowmeter 8I5B08 8I5B15 8I5B16 8I5B25 8I5B26 8I5B40 8I5B41 8I5B50 8I5B51 8I5B80

Chat Now

video

Industrial-Grade Coriolis Flowmeter Promass 8I1B Portable Coriolis Meter From Germany's Endress Hauser-Customizable OEM Support

Chat Now

8619294892599

seth@xiyihub.com

Chat Now

Product Description

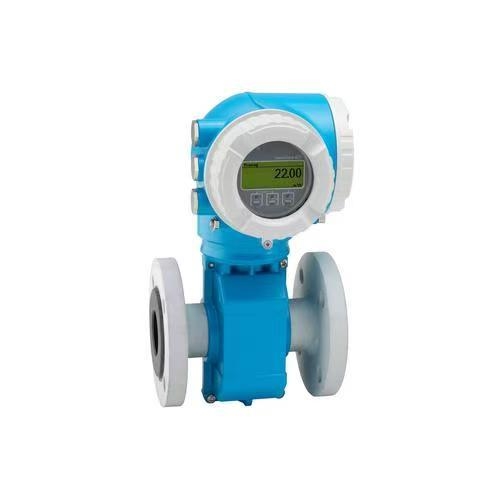

Original E+H Endress+Hauser Electromagnetic Flowmeter Proline Promag P300 5P3B25 4-20ma Measuring System for Water

Product Overview

High-temperature flowmeter for process applications with a compact, easily accessible transmitter. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

Key Specifications

Attribute	Value
Turndown Ratio	100:1
Display Type	LCD
Power	Electric
Long Term Stability	±0.1% of span per year
Output Signal	4-20 mA
Vacuum Resistance	10 mbar (0.15 psi)
Ingress Protection	IP67
Diaphragm Material	316L Stainless Steel
Pressure Sensing Element	Piezoresistive
Customized Support	OEM
Flange Material	316SST
Overpressure Limit	2 times of full scale range
Process Connection	1/2" NPT
Range	0-10,000 psi
Accuracy	±0.1% of span

Field of Application

Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers high flexibility in operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures

Device Properties

Nominal diameter: max. DN 600 (24")
All common Ex approvals
Liner made of PTFE or PFA
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

Key Benefits

Diverse applications - wide variety of wetted materials
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Maintenance-free - no moving parts
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Specifications

Type:

Electromagnetic flowmeter

Origin:

Germany

Model:

5P3B

Brand name:

Endress+Hauser

Support customized:

OEM, ODM

Warranty:

1 year

Measuring principle:

Electromagnetic

Detailed Specifications

Nominal diameter range:

DN 15 to 600 (½ to 24")

Wetted materials:

Liner: PFA; PTFE
Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

Measured variables:

Volume flow, conductivity, mass flow

Max. measurement error:

Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

Measuring range:

4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

Max. process pressure:

PN 40, Class 300, 20K

Medium temperature range:

Liner material PFA: -20 to +150 °C (-4 to +302 °F)
Liner material PFA high-temperature: -20 to +180 °C (-4 to +356 °F)
Liner material PTFE: -40 to +130 °C (-40 to +266 °F)

Ambient temperature range:

Flange material carbon steel: -10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: -40 to +60 °C (-40 to +140 °F)

Sensor housing material:

DN 15 to 300 (½ to 12"): AlSi10Mg, coated
DN 350 to 600 (14 to 24"): Carbon steel with protective varnish

Transmitter housing material:

AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic transmitter design

Degree of protection:

Standard: IP66/67, Type 4X enclosure
